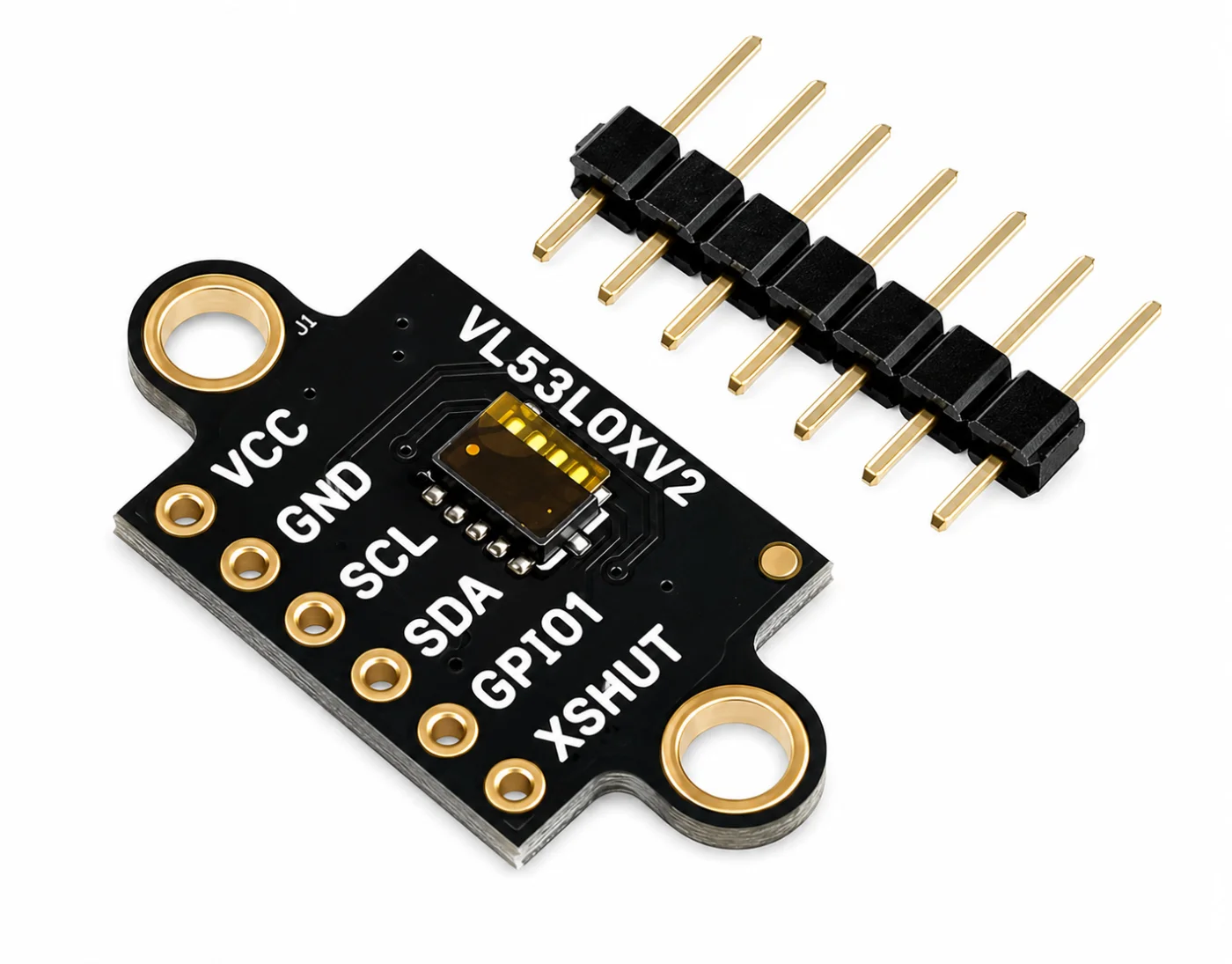

VL53L0X Time-of-Flight (ToF) Laser Distance Sensor 940nm GY-VL53L0XV2 I2C/IIC Distance Module

Description

The GY-VL53L0XV2 VL53L0X Time-of-Flight (ToF) Laser Distance Sensor Module is a compact distance-measuring sensor designed for accurate, non-contact distance detection. Using a 940nm infrared laser emitter and Time-of-Flight technology, the sensor measures the distance to an object by determining how long the emitted light takes to return to the sensor. Unlike conventional ultrasonic sensors, it uses light rather than sound, making it suitable for compact and fast-response applications. The module communicates with microcontrollers through the I²C/IIC interface, making it easy to integrate with Arduino, ESP32, Raspberry Pi and other development platforms.

Key Features

• VL53L0X Time-of-Flight (ToF) sensor
• 940nm infrared laser emitter
• Non-contact distance measurement
• I²C/IIC digital communication
• Compact breakout-board design
• Fast and reliable distance sensing
• Less affected by target shape than ultrasonic sensing
• Suitable for short-range object detection
• Compatible with Arduino, ESP32, Raspberry Pi and other MCUs
• Ideal for robotics, automation and proximity sensing

Specifications

What's in the Box

• 1 × GY-VL53L0XV2 VL53L0X ToF Distance Sensor Module
