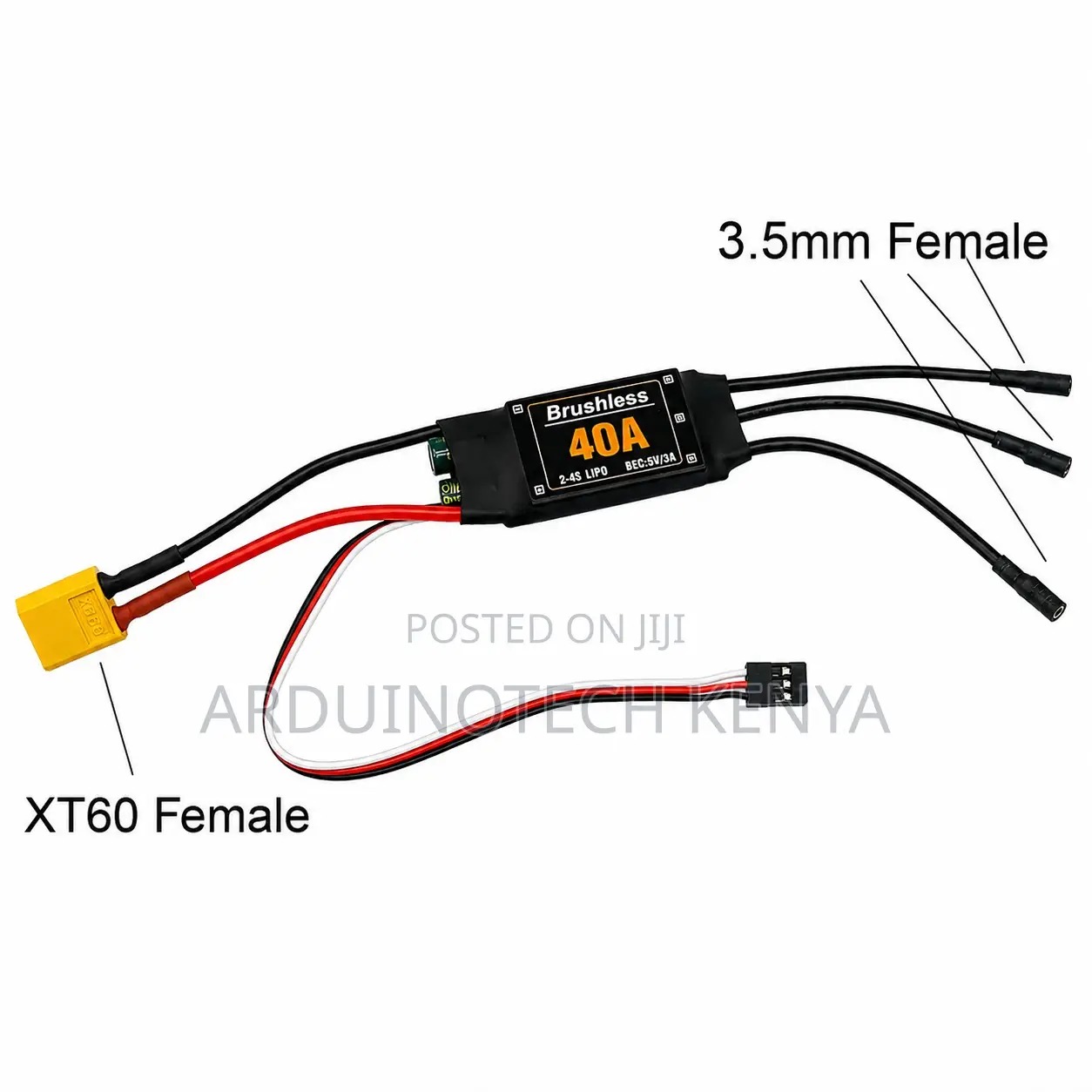

40A Brushless ESC 2-4S Electronic Speed Controller with 5V 3A BEC & XT60 Plug
● In Stock
| SKU | AT-0002 |
| Category | Drones |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
Need a reliable and efficient electronic speed controller for brushless motors used in RC aircraft, drones, helicopters, and multi-rotor platforms? That is what the 40A Brushless ESC is for. Supporting 2S to 4S LiPo battery configurations, this ESC delivers up to 40A continuous current, ensuring stable and responsive motor performance during flight. Equipped with a built-in 5V 3A Battery Elimination Circuit (BEC), the controller can directly power receivers, servos, and flight controllers, eliminating the need for a separate power supply. The pre-installed XT60 connector allows quick and secure battery connections, making installation simple and convenient. Designed with advanced firmware and protection f
Key Features
- Supports 2S–4S LiPo battery packs
- 40A continuous output current
- Built-in 5V 3A BEC power supply
- Compatible with brushless motors
- Pre-installed XT60 battery connector
- Smooth and precise throttle response
- Fast startup and stable motor control
- Overheat protection
- Low-voltage protection
- Signal loss protection
- Compact and lightweight design
- Suitable for RC airplanes, helicopters, and drones
Specifications
| Product Type | Brushless Electronic Speed Controller (ESC) |
|---|---|
| Continuous Current | 40A |
| Peak Current | 55A–60A (short duration) |
| Input Voltage | 2S–4S LiPo (7.4V–14.8V) |
| BEC Output | 5V / 3A |
| Connector Type | XT60 Plug |
| Motor Compatibility | Sensorless Brushless Motors |
| Control Signal | Standard PWM |
| Cooling | Passive Heat Dissipation |
| Application | RC Aircraft and Multi-Rotor Systems |
What's in the Box
- 1 × 40A Brushless ESC
- 1 × XT60 Connector (pre-installed)
- 1 × Servo Signal Lead
- Net Weight: 35 g
