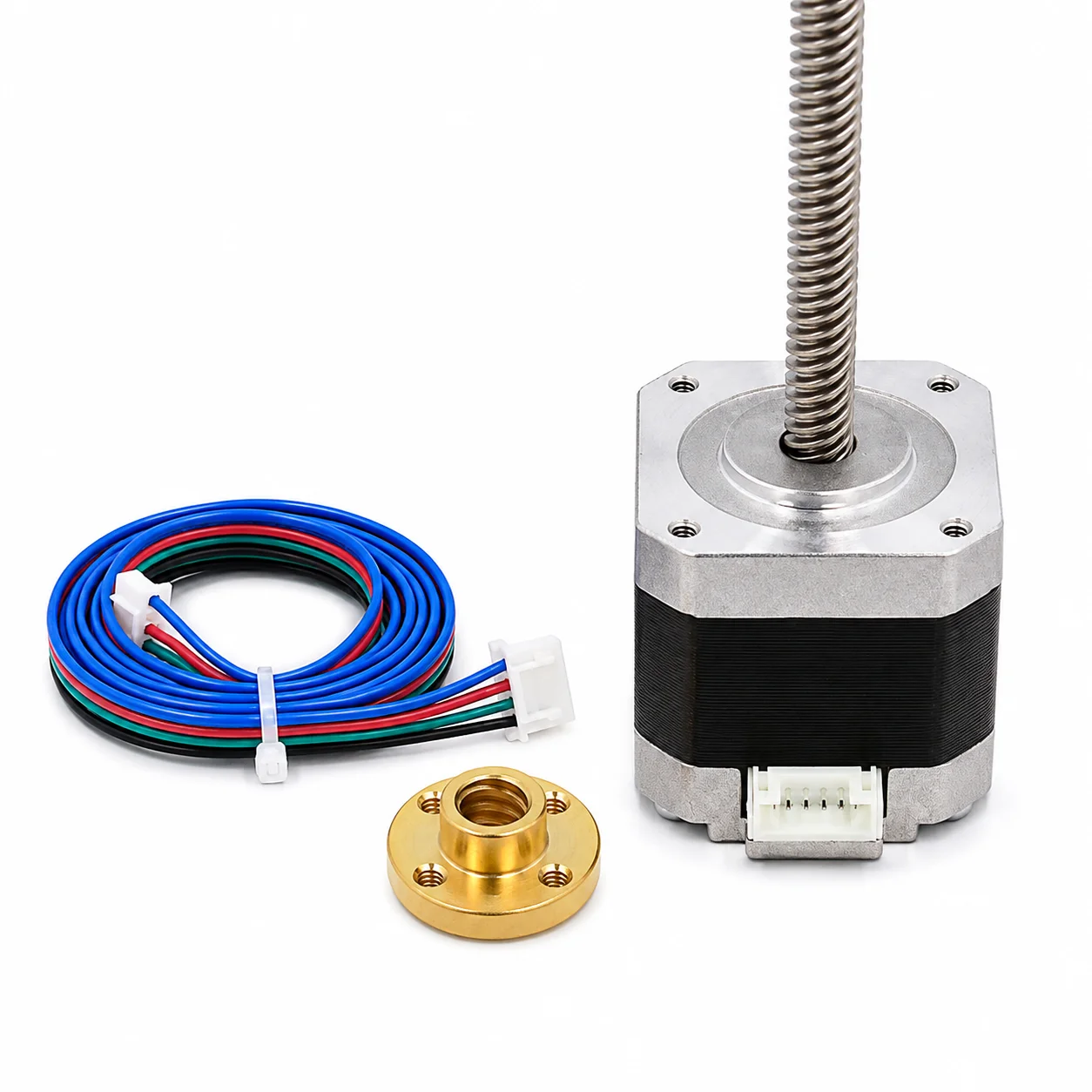

NEMA 17 34mm Stepper Motor with T8 300mm Lead Screw

Description

The NEMA 17 34mm Stepper Motor with T8 300mm Lead Screw is a linear motion drive assembly designed for CNC machines, 3D printers, laser engravers, and other DIY automation projects. It combines a compact NEMA 17 stepper motor with a 300mm T8 lead screw to provide controlled linear movement, making it suitable for Z-axis applications. The stepper motor enables precise incremental positioning, while the T8 lead screw converts the motor's rotary motion into smooth linear movement. It can be paired with common stepper motor drivers such as the A4988 and DRV8825, depending on the motor's rated current.

Key Features

• NEMA 17 stepper motor with 34mm body length
• Includes T8 300mm lead screw
• Designed for CNC Z-axis and 3D printer applications
• Standard 42 × 42mm NEMA 17 mounting face
• 5mm motor shaft diameter
• 1.8° step angle for precise positioning
• 4-wire bipolar stepper motor
• T8 lead screw converts rotary motion into linear movement
• Compatible with common stepper drivers such as A4988 and DRV8825
• Suitable for CNC machines, 3D printers, laser engravers and DIY automation

Specifications

What's in the Box

• 1 × NEMA 17 34mm Stepper Motor
• 1 × T8 300mm Lead Screw
• 1 × T8 Lead Screw Nut
• 1 × Motor-to-Lead-Screw Coupler
