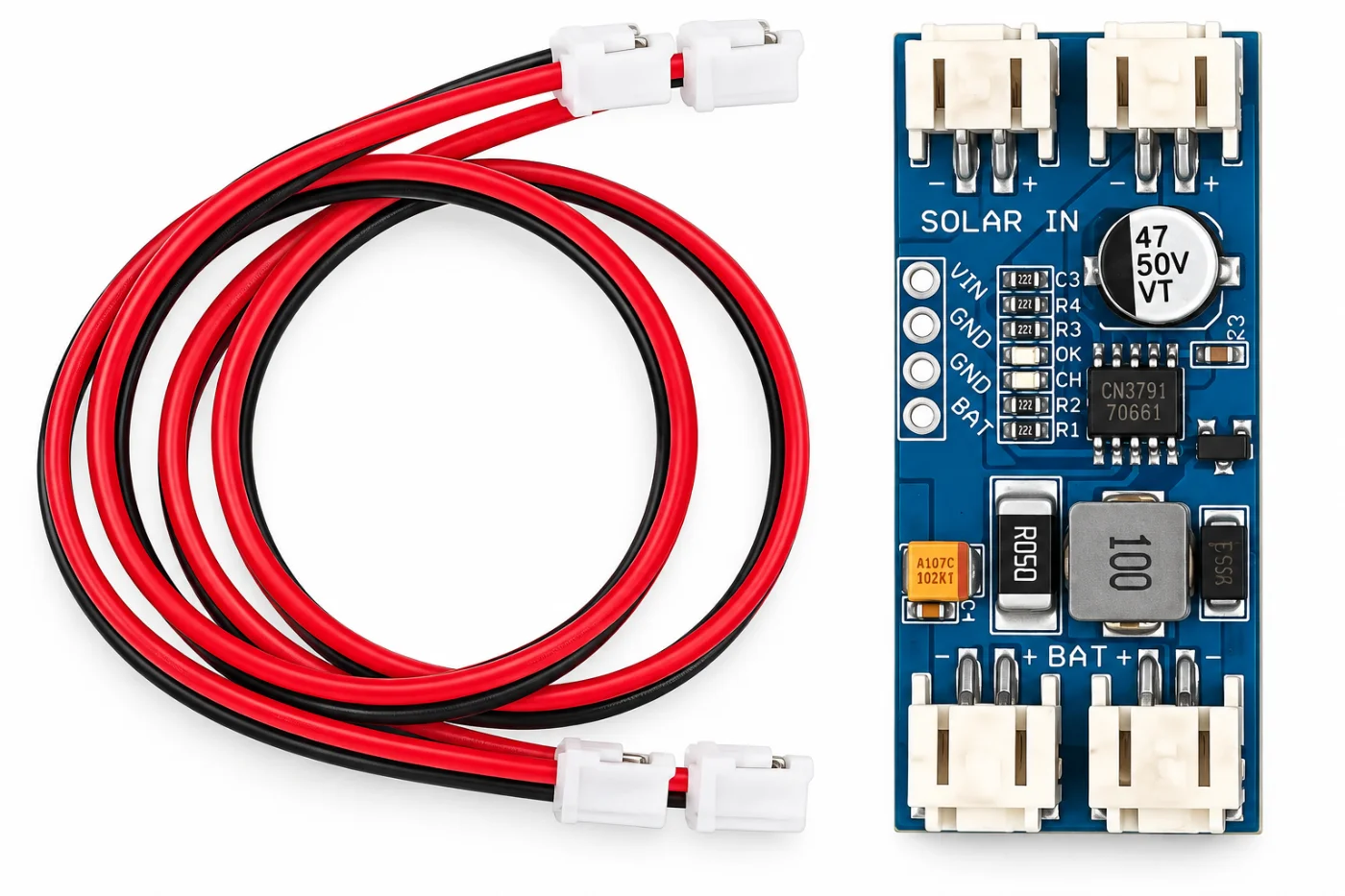

CN3791 MPPT Solar Charger Module
● In Stock
| SKU | CN3791 MPPT Solar Charger |
| Category | Electronic Components |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The CN3791 MPPT Solar Charging Controller Module is designed for charging a single-cell 3.7V lithium-ion or lithium-polymer battery from a solar panel or compatible DC power source. It uses the CN3791 switching charge controller and supports a regulated 4.2V charging voltage for standard 1S lithium batteries. Its Maximum Power Point Tracking (MPPT) functionality helps make better use of available solar-panel power by maintaining the panel near a preset operating point. This makes the module suitable for solar-powered IoT devices, remote sensors, monitoring systems, portable electronics, and DIY renewable-energy projects. Depending on the module version, it can be used with 5V, 6V, 9V or 12V nominal solar panels, provided the actual input voltage remains within the module's supported limits. The module is a battery charger, not a battery protection board. For projects using unprotected lithium cells, a suitable 1S battery protection circuit is recommended.
Key Features
- Based on the CN3791 solar charging controller
- Designed for 1-cell (1S) lithium batteries
- Suitable for 3.7V nominal Li-ion/LiPo batteries
- 4.2V full-charge voltage
- MPPT solar charging functionality
- Compatible with suitable 5V, 6V, 9V and 12V solar sources
- Switching charger design for improved efficiency
- Constant-current / constant-voltage charging
- Automatic charge management
- Suitable for solar-powered IoT projects
- Compact PCB for embedded applications
- Can be used with 18650 lithium-ion cells when properly configured
- Useful for remote and off-grid electronics
Specifications
| Specification Details | |
| Product Type Solar Lithium Battery Charger Module | |
| Controller IC CN3791 | |
| Charging Technology MPPT Switching Charger | |
| Battery Type Li-ion / LiPo | |
| Battery Configuration 1S / 1 Cell | |
| Battery Nominal Voltage 3.7V | |
| Full Charge Voltage 4.2V | |
| Charging Method Constant Current / Constant Voltage (CC/CV) | |
| Solar Panel Compatibility 5V / 6V / 9V / 12V* | |
| Maximum Input Voltage Up to 28V at IC level* | |
| Charge Current Board dependent, commonly up to 2A* | |
| MPPT Supported | |
| Switching Frequency Approximately 300kHz | |
| Battery Protection Not integrated* | |
| Application Solar battery charging | |
| Suitable Batteries 1S Li-ion / LiPo / 18650 | |
| Operating Temperature Approx. -40°C to +85°C* | |
| Weight Approximately 8g | |
| Typical Applications | |
| Suitable for solar-powered ESP32/Arduino projects, IoT sensor nodes, weather stations, remote monitoring systems, 18650 battery projects, portable electronics, outdoor sensors, security devices and DIY solar energy systems. | |
| Important Battery Note | |
| This module is intended for one 3.7V lithium cell (1S) with a 4.2V charge termination voltage. It should not be used directly to charge 2S, 3S or other multi-cell lithium battery packs. |
What's in the Box
- 1 × CN3791 MPPT 1S Lithium Battery Solar Charging Module
