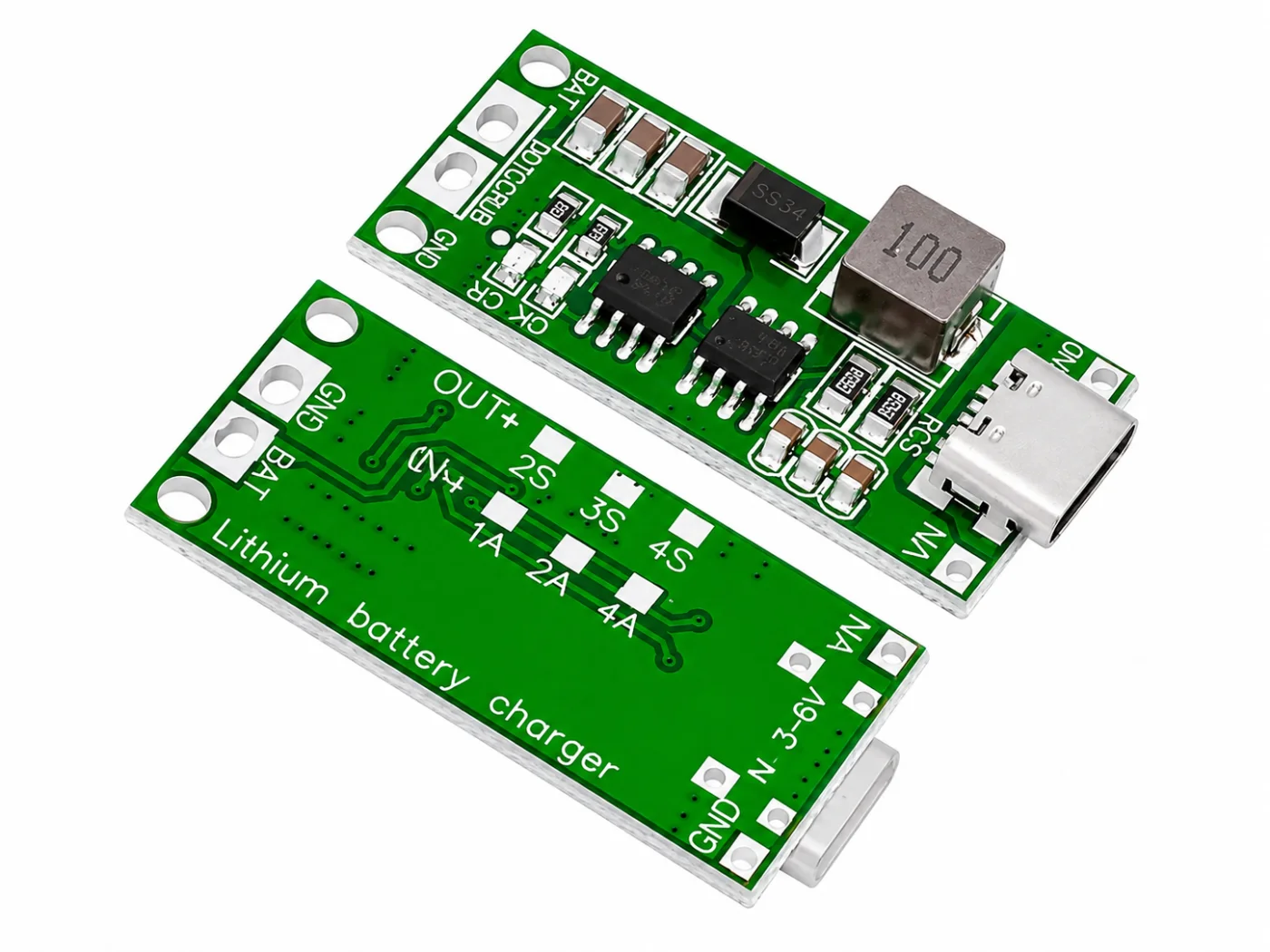

2S 2A Lithium Battery Charging Board Type-C USB

KSh300.00

● In Stock

SKU	AT-0660
Category	Electronic Components
Availability	In Stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The 2S 2A Lithium Battery Charging Board with Type-C USB is a compact charging module, designed for charging two-cell (2S) 7.4V lithium-ion and LiPo battery packs. Featuring a USB Type-C input, 2A charging capability, and built-in safety protection, it is ideal for DIY battery packs, portable electronics, robotics, and Arduino projects.

Key Features

Designed for 2S (7.4V nominal) lithium-ion and LiPo battery packs
USB Type-C input for convenient power connection
Supports up to 2A charging current
Constant Current/Constant Voltage (CC/CV) charging method
Built-in overcharge protection
Overcurrent protection for safe operation
Short-circuit protection
LED indicators for charging and fully charged status
Compact PCB design for easy installation
High charging efficiency and stable performance
Suitable for DIY battery packs, robotics, portable electronics, and Arduino projects

Specifications

Battery Type	2S Lithium-ion / Lithium Polymer
Battery Voltage	7.4V nominal (8.4V fully charged)
Input Interface	USB Type-C
Input Voltage	5V DC
Maximum Charging Current	2A
Charging Method	Constant Current / Constant Voltage (CC/CV)
Charge Cut-off Voltage	8.4V
Status Indicators	Charging / Fully Charged LEDs
Operating Temperature	-20°C to +60°C (typical)
