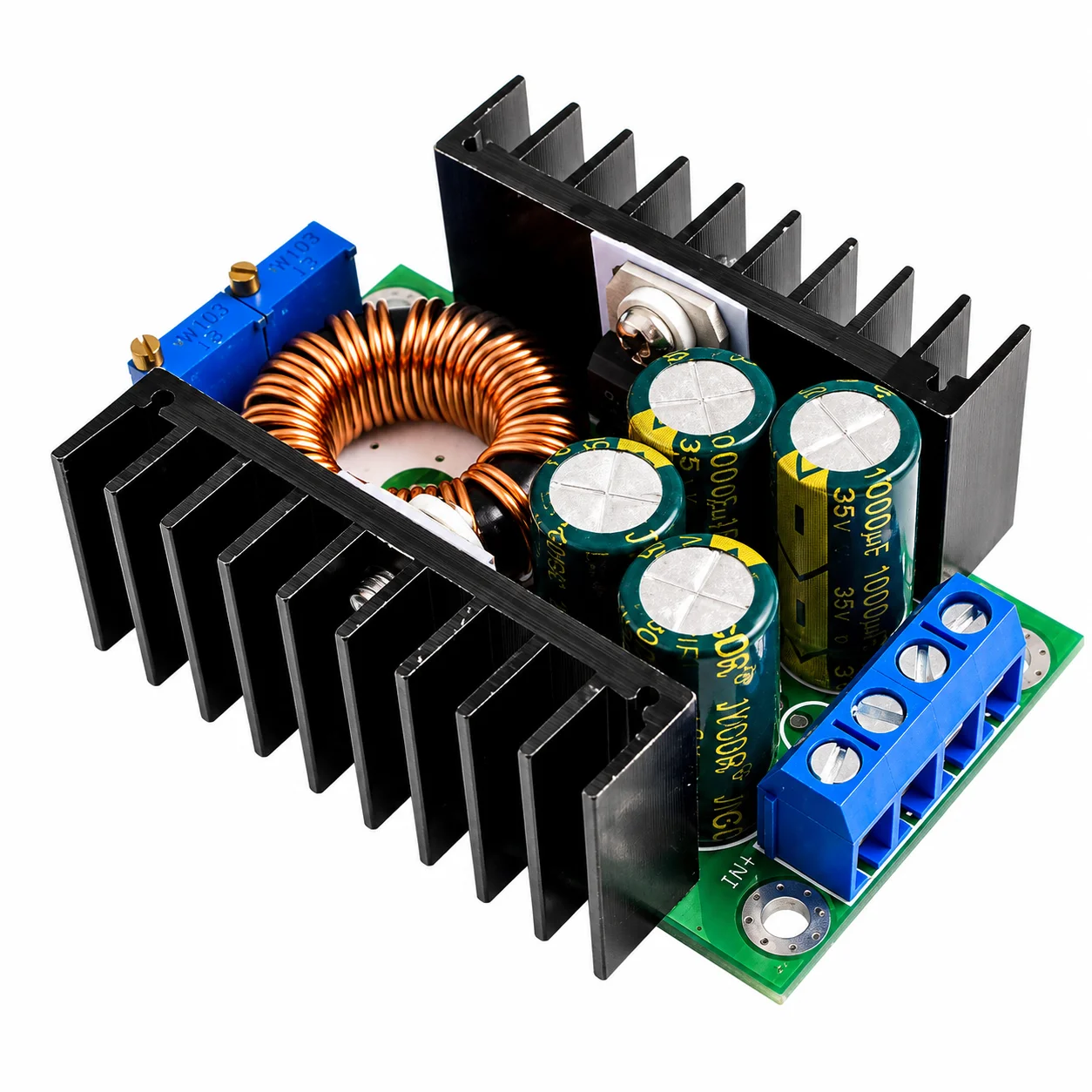

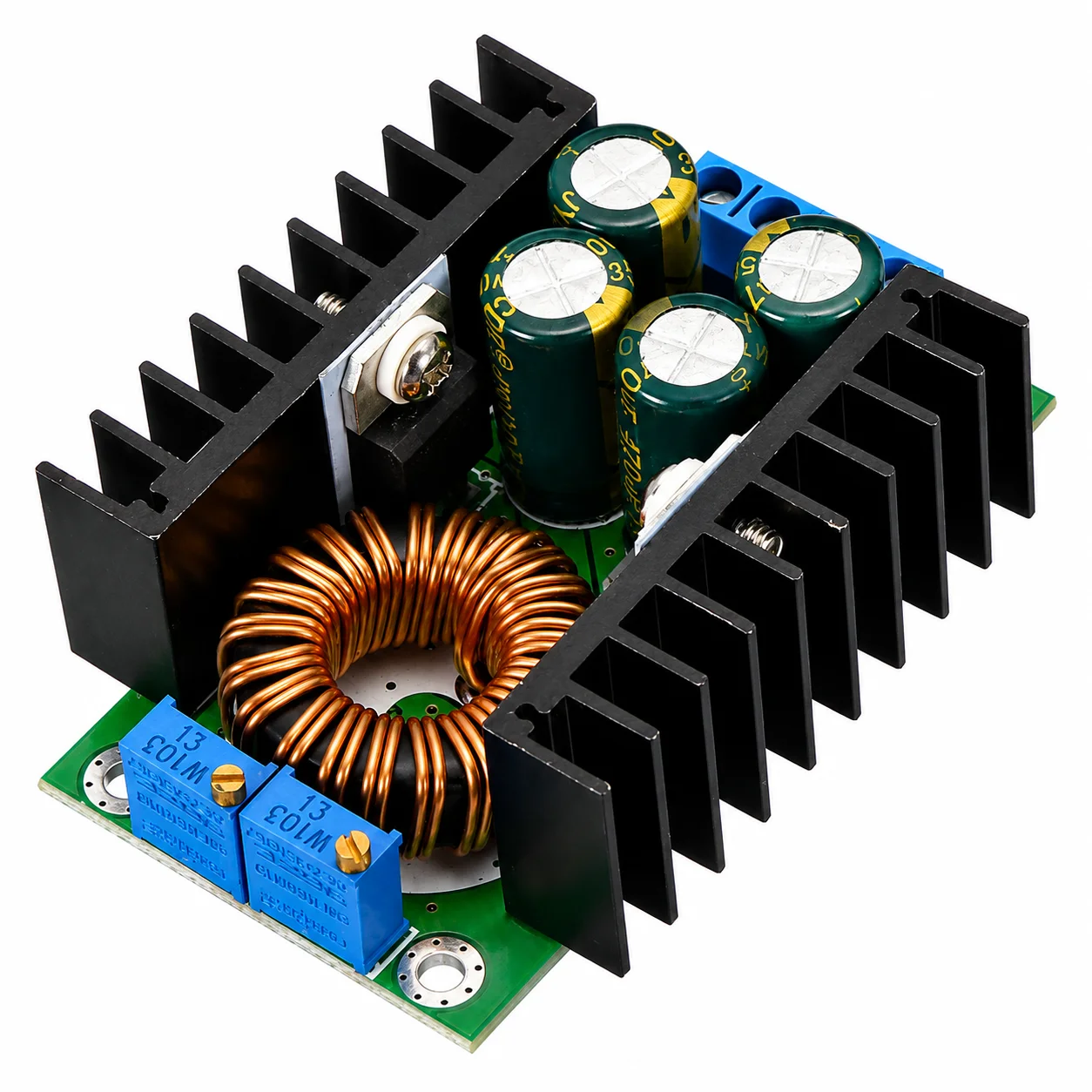

XL4016 DC-DC 9A 300W Step-Down Buck Converter Module | Adjustable High-Power Voltage Regulator
KSh950.00
● Low Stock
| SKU | AT-0666 |
| Category | Electronic Components |
| Availability | Low Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The XL4016 DC-DC 9A 300W Step-Down Buck Converter is a high-power adjustable voltage regulator designed to efficiently convert higher DC voltages into stable lower output voltages. With up to 9A output current and a maximum power rating of 300W, it is ideal for battery charging, LED power supplies, robotics, solar systems, automotive electronics, and industrial applications.
Key Features
- Based on the XL4016 high-power buck converter IC
- Adjustable output voltage using a precision multi-turn potentiometer
- High conversion efficiency of up to 95%
- Supports input voltages from 5V to 40V DC
- Adjustable output voltage from 1.2V to 35V DC
- Maximum output current up to 9A
- Maximum output power up to 300W
- Large aluminum heatsink for improved cooling
- Built-in thermal shutdown protection
- Overcurrent and short-circuit protection
- Low ripple, stable voltage output
- Suitable for continuous high-power applications
- Compact design for easy integration
Specifications
| IC Model | XL4016 |
|---|---|
| Converter Type | DC-DC Step-Down (Buck) |
| Input Voltage | 5V–40V DC |
| Output Voltage | 1.2V–35V DC (Adjustable) |
| Maximum Output Current | 9A |
| Recommended Continuous Current | Up to 8A (with adequate cooling) |
| Maximum Output Power | 300W |
| Conversion Efficiency | Up to 95% |
| Switching Frequency | 180kHz |
| Voltage Regulation | ±1% |
| Operating Temperature | -40°C to +85°C |
| Module Dimensions | Approx. 66mm × 48mm × 28mm |
