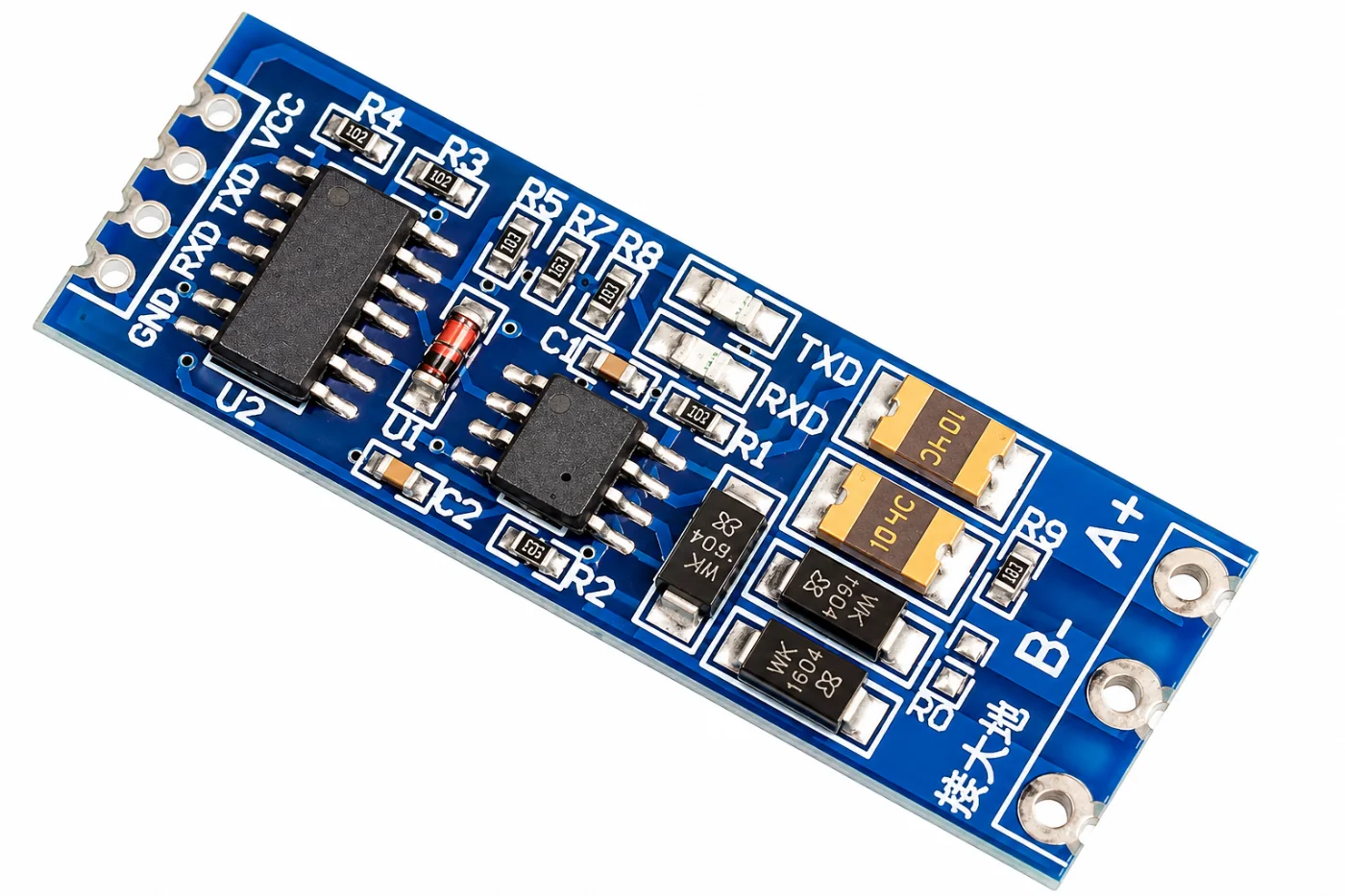

TTL to RS485 Converter Module

KSh200.00

● In Stock

SKU	TTL to RS485
Category	Development Boards
Availability	In Stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The TTL to RS485 Converter Module is a compact serial communication module designed for bidirectional conversion between TTL UART signals and RS485 differential signals. It allows microcontrollers such as Arduino, ESP32, STM32, Raspberry Pi UART interfaces and other embedded systems to communicate with RS485 devices over longer distances and in electrically noisy environments. The module features automatic data direction / flow control, eliminating the need for a separate GPIO pin to manually switch between transmit and receive modes. The onboard circuitry automatically detects UART transmission and controls the RS485 transceiver direction, simplifying both wiring and programming. RS485 differential communication offers improved noise immunity and is widely used in industrial automation, Modbus networks, sensors, PLC communication, energy meters and long-distance serial communication. This module is particularly useful when connecting TTL UART devices to equipment using RS485 A/B communication lines.

Key Features

TTL UART to RS485 signal conversion
Bidirectional communication
Automatic transmit/receive direction control
No manual DE/RE control pin required
Hardware automatic flow control
Supports standard UART serial communication
RS485 differential A/B output
Improved noise resistance compared with TTL UART
Suitable for longer-distance serial communication
Compact PCB design
Easy integration with microcontrollers
Suitable for Modbus RTU applications
Ideal for industrial sensors and control systems
Can be used with Arduino, ESP32 and STM32
Useful for connecting microcontrollers to RS485 equipment

Specifications

Specification Details
Product Type TTL UART to RS485 Converter Module
Conversion TTL ↔ RS485
Communication Direction Bidirectional
TTL Interface TXD / RXD
RS485 Interface A / B
Flow Control Automatic Hardware Flow Control
TX/RX Direction Switching Automatic
Communication Type Half-Duplex RS485
Protocol Transparent Serial Conversion
Modbus RTU Compatible Yes
Typical Logic Supply 3.3V / 5V depending on module version
UART Baud Rate Module/transceiver dependent
Transmission Distance Up to approximately 1200m under suitable RS485 conditions*
Network Type RS485 Multi-Point Bus
Isolation Non-Isolated
External Direction GPIO Not Required
Applications UART, RS485, Modbus, industrial communication
Weight Approximately 4g
Connection Overview
On the TTL/UART side, connect the module to the microcontroller's TX, RX, VCC and GND as indicated on the board. On the RS485 side, connect the A and B terminals to the corresponding A/B lines of the RS485 device.
Because the module uses automatic direction control, your microcontroller normally communicates using its standard UART functions without needing an additional pin to switch the transceiver between transmitting and receiving.
Typical Applications
Ideal for Arduino and ESP32 RS485 projects, Modbus RTU networks, industrial sensors, PLC communication, energy meters, smart meters, building automation, access-control equipment, motor controllers, remote monitoring systems and long-distance UART communication.
