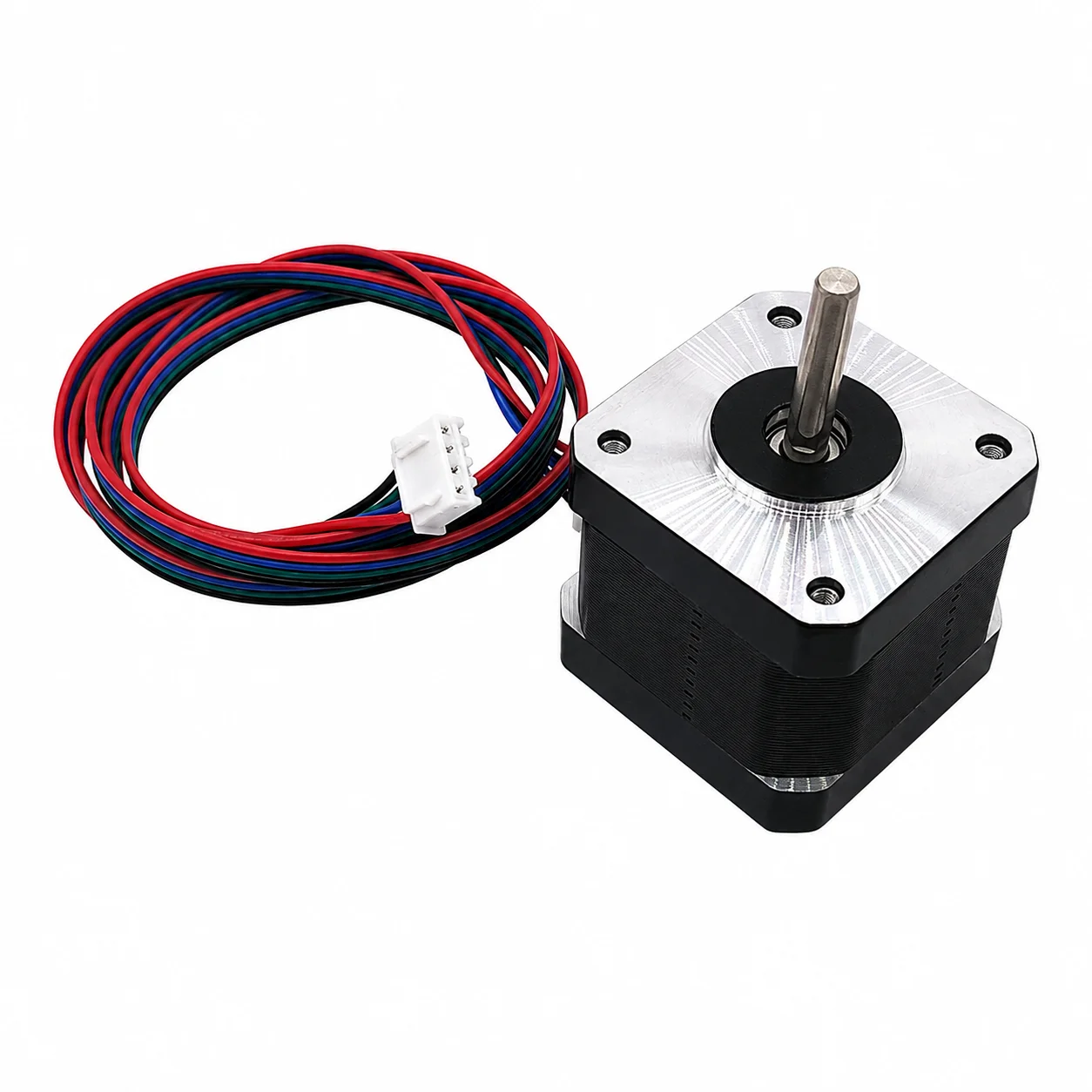

NEMA 17 34mm Stepper Motor 42x42mm 1.8° 4-Wire

KSh1,600.00

● In Stock

SKU	NEMA17
Category	Actuators & Motors
Availability	In Stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The NEMA 17 34mm Stepper Motor is a compact and reliable bipolar stepper motor designed for precise motion control applications. With a standard NEMA 17 mounting size and 34mm body length, it is suitable for 3D printers, CNC machines, laser engravers, robotics, camera sliders, and other automated systems. The motor provides accurate incremental movement and can be controlled using popular stepper motor drivers such as the A4988, DRV8825, and similar driver modules.

Key Features

Standard NEMA 17 stepper motor format
34mm motor body length
42 × 42mm mounting face
1.8° step angle for precise positioning
4-wire bipolar stepper motor
Suitable for A4988, DRV8825 and similar drivers
Ideal for 3D printers, CNC machines and laser engravers
Useful for robotics and automated motion systems
Durable construction for repeated positioning applications
Easy to integrate into DIY and professional motion-control projects

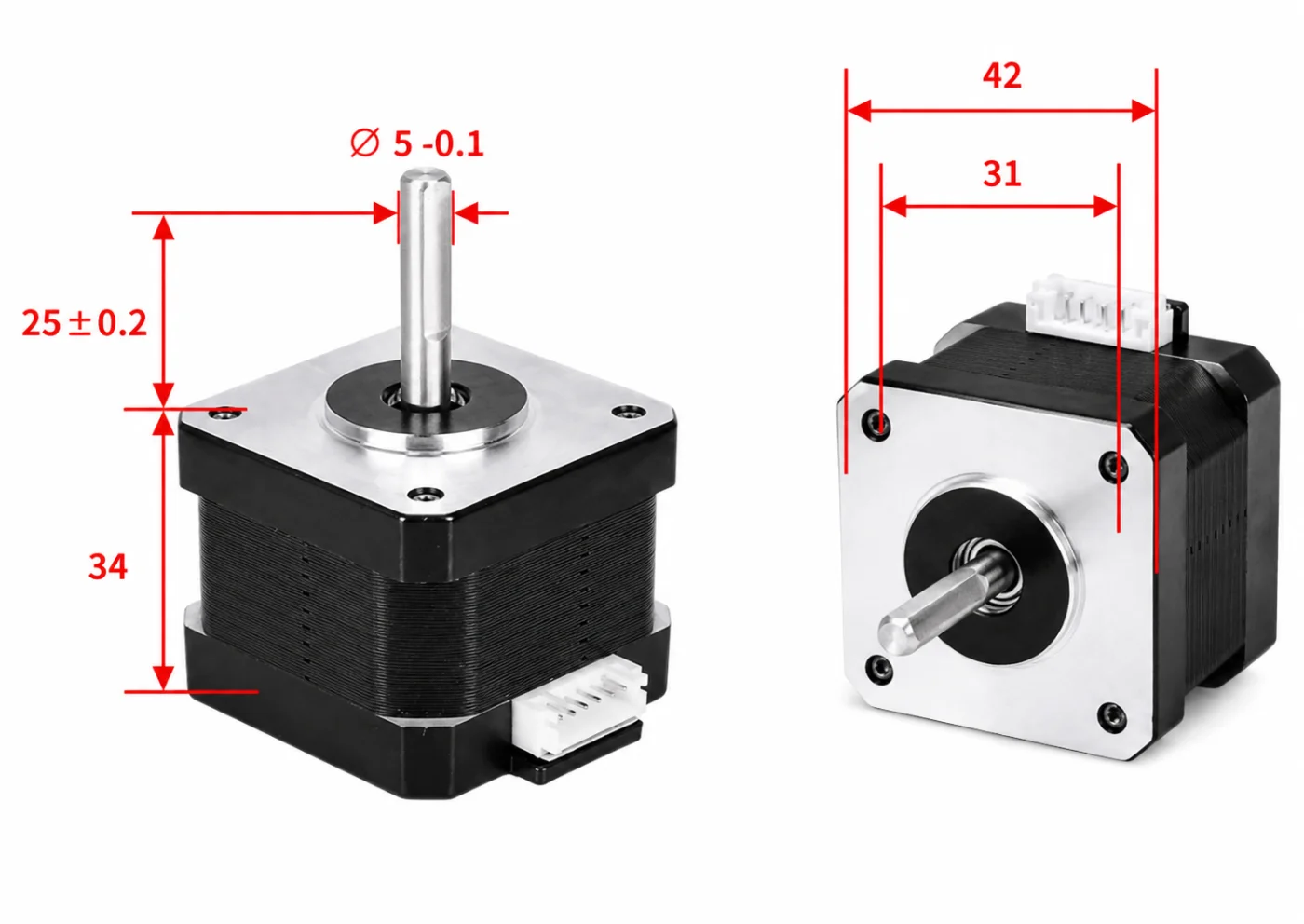

Specifications

Specification Details
Motor Type Bipolar Stepper Motor
Model NEMA 17
Body Length 34mm
Frame Size 42 × 42mm
Step Angle 1.8°
Number of Wires 4
Phase Configuration 2 Phase
Operating Voltage Typically 12V
Rated Current Approximately 1.2–1.5A/phase*
Holding Torque Approximately 0.3–0.4 N·m*
Shaft Diameter Approximately 5mm
Applications 3D Printer, CNC, Robotics, Laser Engraver
Driver Compatibility A4988, DRV8825 and similar stepper drivers
Weight
Approximately 300g per motor.
