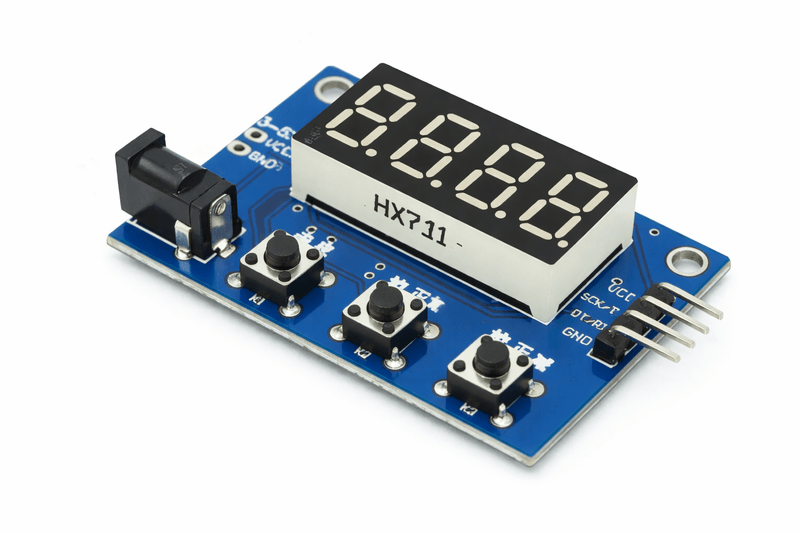

HX711 Load Cell AD Weight Pressure Sensor Module with Display 24-Bit Electronic Scale Weighing
● In Stock
| SKU | AT-0119 |
| Category | Sensors |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
HX711 Load Cell AD Weight Pressure Sensor Module with Display — a high-precision weighing module designed for electronic scales, pressure sensors, and load cell measurement systems. Built around the widely used HX711 24-bit analog-to-digital converter chip, this module can amplify and accurately convert the tiny voltage signals from a load cell into stable and precise digital weight readings. Unlike standard HX711 boards, this version includes an integrated 4-digit digital display, allowing the measured weight to be viewed directly without requiring a separate microcontroller screen. The module supports common 5kg, 10kg, and similar strain gauge load cells, making it ideal for creating
Key Features
- HX711 24-bit high-precision ADC chip
- Built-in 4-digit digital display
- Supports common 5kg, 10kg, and similar load cells
- USB or direct wire power supply
- High sensitivity and low-noise signal amplification
- Typical resolution up to approximately 1g with 5kg load cell
- Tare / zeroing function
- Calibration function with memory retention after power-off
- Real-time digital weight display
- Compatible with Arduino, ESP32, STM32, Raspberry Pi, and PLC systems
- Supports continuous or change-triggered data transmission
- Ideal for electronic scales, pressure sensing, industrial weighing, and DIY projects
Specifications
| Operating voltage | DC 3V–5.5V |
|---|---|
| Compact size | approximately 50 × 33 × 10 mm |
| Wide operating temperature range | -40°C to +70°C |
