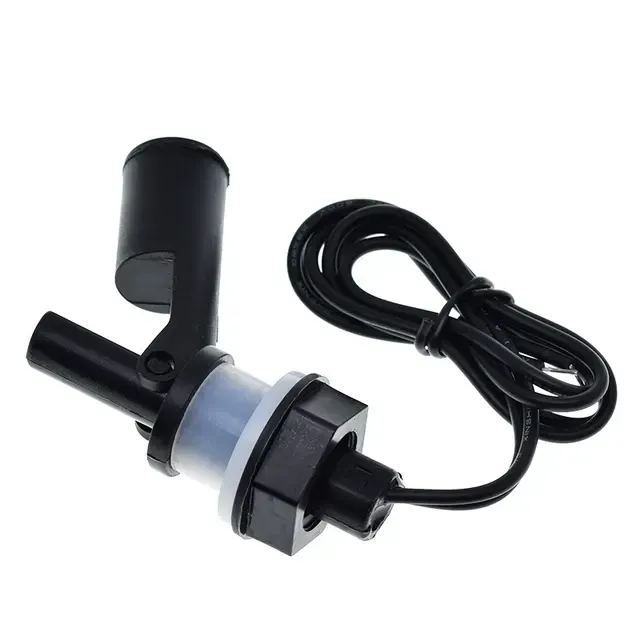

Horizontal Water Level Float Switch

Name: Horizontal Water Level Float Switch
SKU: AT-0232
Price: 500 KES
Availability: OutOfStock

KSh500.00 KSh600.00 -17%

● Sold Out

Order via WhatsApp

SKU	AT-0232
Category	Sensors
Availability	Sold Out
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

Horizontal Water Level Float Switch — a simple, durable, and reliable liquid level detection sensor designed to automatically detect the presence or absence of water in tanks, pools, and containers. Made from high-quality PP (polypropylene) plastic , this float-type switch uses a magnetic reed mechanism to open or close the circuit when the water level rises or falls. It can be used to trigger pumps, alarms, or indicators in Arduino, ESP32, or industrial control systems . Its compact and waterproof design makes it ideal for aquariums, water tanks, sump systems, and automatic irrigation setups .

Key Features

Simple, reliable, and cost-effective liquid level sensing.
Can be configured as Normally Open (NO) or Normally Closed (NC) by inverting installation direction.
Compact waterproof design for tight spaces.
Compatible with microcontrollers for automation and monitoring.
Resistant to corrosion — suitable for both fresh and salt water .

Specifications

Sensor Type	Horizontal float switch (liquid level sensor)
Material	Durable PP (polypropylene) plastic – corrosion and temperature resistant
Switch Type	Magnetic reed switch (normally open or normally closed configurable)
Mounting Type	Horizontal side-mount installation
Operating Voltage	0–100V DC / 0–220V AC (low current switching)
Maximum Switching Current	0.5A – 1A (typical)
Power Rating	10W (max)
Operating Temperature	–10°C to +85°C
Cable Length	Approx. 30 cm
Thread Diameter	~M10 (varies by model)
Float Ball Diameter	~18–25 mm
Waterproof Rating	IP68 (fully submersible)
Compatibility	Arduino, ESP32, Raspberry Pi, industrial controllers, and relay modules
