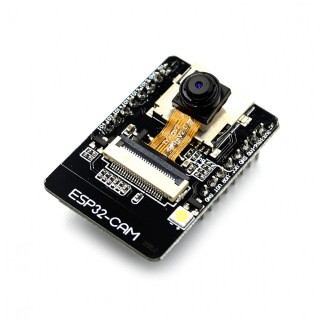

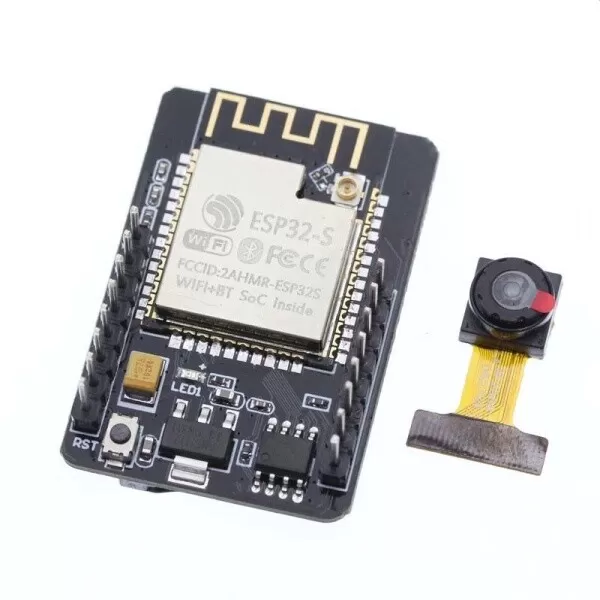

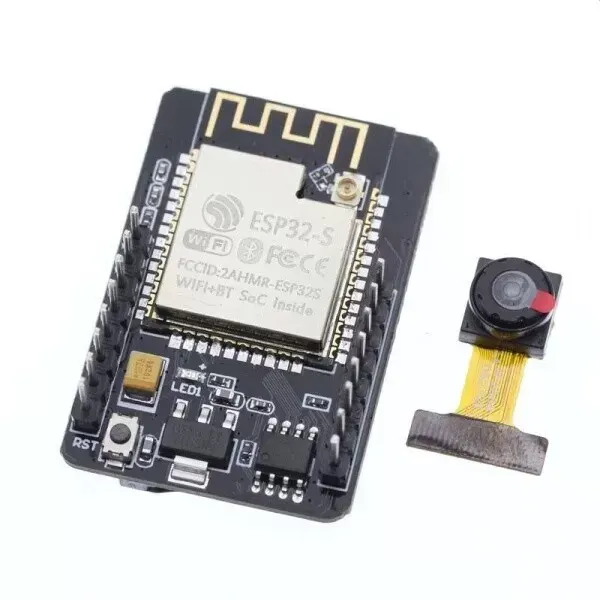

ESP32 CAM OV2640 Camera WiFi Wireless Module
● In Stock
| SKU | AT-0229 |
| Category | Development Boards |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
ESP32-CAM OV2640 Module: a compact and cost-effective WiFi-enabled camera development board based on the ESP32-S chip. It integrates a powerful dual-core processor , OV2640 2MP camera , and microSD card slot , enabling real-time image capture, video streaming, and wireless transmission over WiFi or Bluetooth®. This versatile module is ideal for IoT security systems, remote monitoring, facial recognition, and image-based automation . It can be programmed easily using the Arduino IDE , ESP-IDF , or MicroPython , and supports integration with cloud-based or local IoT servers. With its low power consumption, built-in antenna, and strong wireless performance, the ESP32-CAM is perfect for d
Key Features
- Integrated 2 MP camera for photo and video streaming.
- Dual-core WiFi + Bluetooth® microcontroller.
- On-board microSD card slot for image storage.
- Compact, low-power design ideal for embedded systems.
- Supports face detection and object recognition through ESP-IDF AI libraries.
- Compatible with Arduino IDE and open-source camera libraries.
Specifications
| Model | ESP32-CAM with OV2640 Camera |
|---|---|
| Microcontroller | ESP32-S (dual-core 32-bit LX6 processor) |
| Clock Frequency | Up to 240 MHz |
| Camera Sensor | OV2640 2MP (1600×1200 resolution) |
| Connectivity | Wi-Fi: 802.11 b/g/n (2.4 GHz) |
| Bluetooth® | BLE + Classic Bluetooth |
| Flash Memory | 4 MB |
| SRAM | 520 KB |
| Storage | microSD card slot (up to 4 GB) |
| GPIO Pins | 9 (multi-function I/O) |
| Operating Voltage | 5 V DC (via 5 V pin) |
| Logic Level | 3.3 V |
| Interfaces | UART, SPI, I2C, PWM |
| Image Formats | JPEG / BMP |
| Antenna | On-board PCB + U.FL external antenna connector |
| Dimensions | 27 mm × 40.5 mm × 4.5 mm |
| Programming | Arduino IDE, ESP-IDF, MicroPython |
