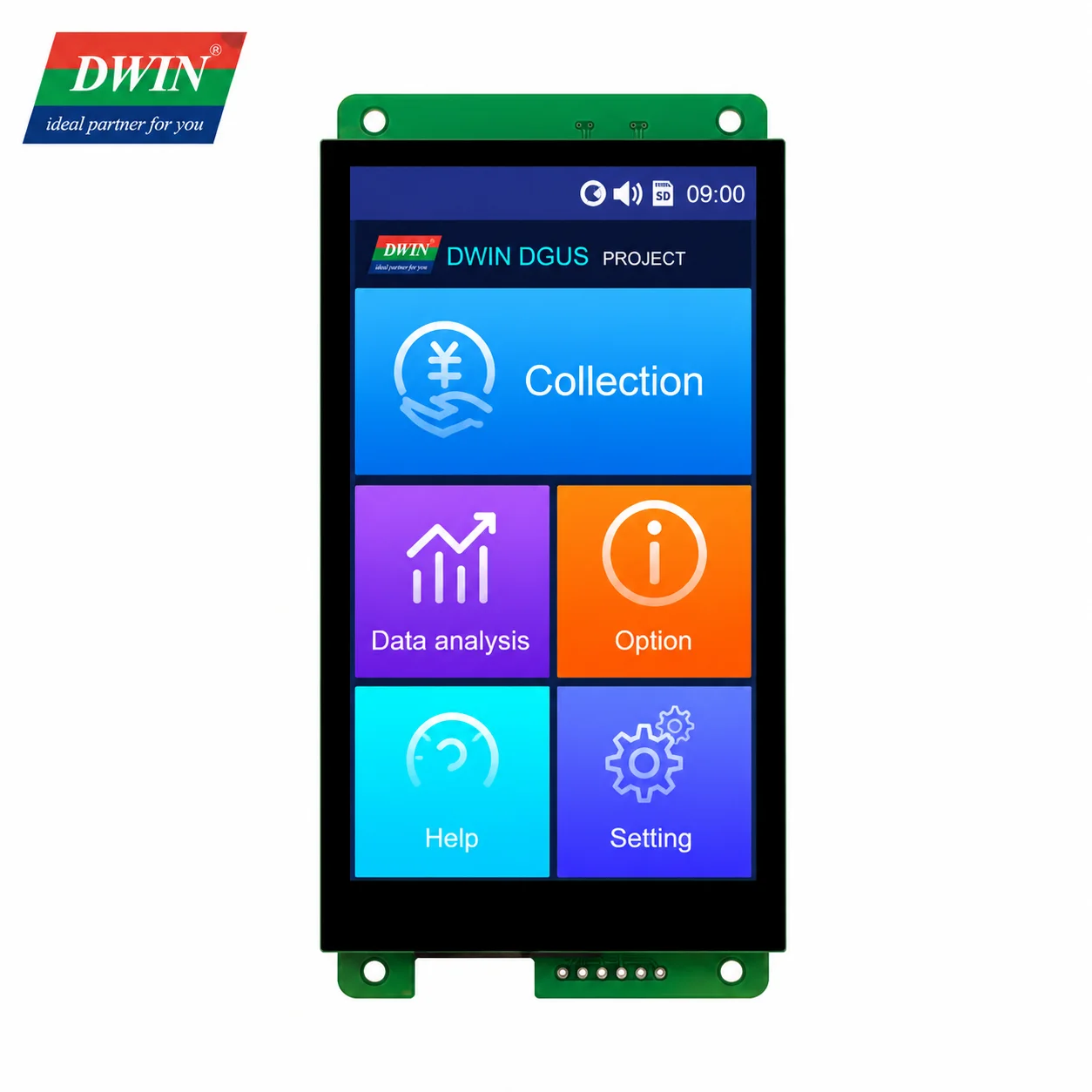

DWIN 4.3 Inch 480×800 TFT LCD HMI Display DMG80480C043_02W with Capacitive Touch

Description

The DWIN DMG80480C043_02W is a 4.3-inch HMI touchscreen display designed for embedded systems, industrial controls, automation equipment, smart devices, and DIY electronics projects. It features a 480×800 pixel IPS TFT LCD with a responsive capacitive touchscreen and communicates with a host controller through a TTL UART serial interface. This makes it easy to connect to microcontrollers such as Arduino, ESP32, STM32 and other UART-compatible systems. DWIN HMI displays handle much of the graphical interface processing internally, allowing developers to create attractive touch-based interfaces without requiring the microcontroller to directly drive every pixel on the display.

Key Features

• 4.3-inch IPS TFT LCD
• 480 × 800 pixel resolution
• Capacitive touchscreen
• TTL UART serial communication
• DWIN HMI architecture with onboard processing
• Bright and clear color display
• Wide viewing angle
• Suitable for embedded control applications
• Compatible with Arduino, ESP32, STM32 and other UART devices
• Ideal for industrial automation, IoT and smart-device interfaces
• Supports graphical touch-based user interfaces
• Compact design for panel and enclosure integration

Specifications

What's in the Box

• 1 × DWIN DMG80480C043_02W 4.3-inch HMI Display Module
• 1 × UART connection cable
