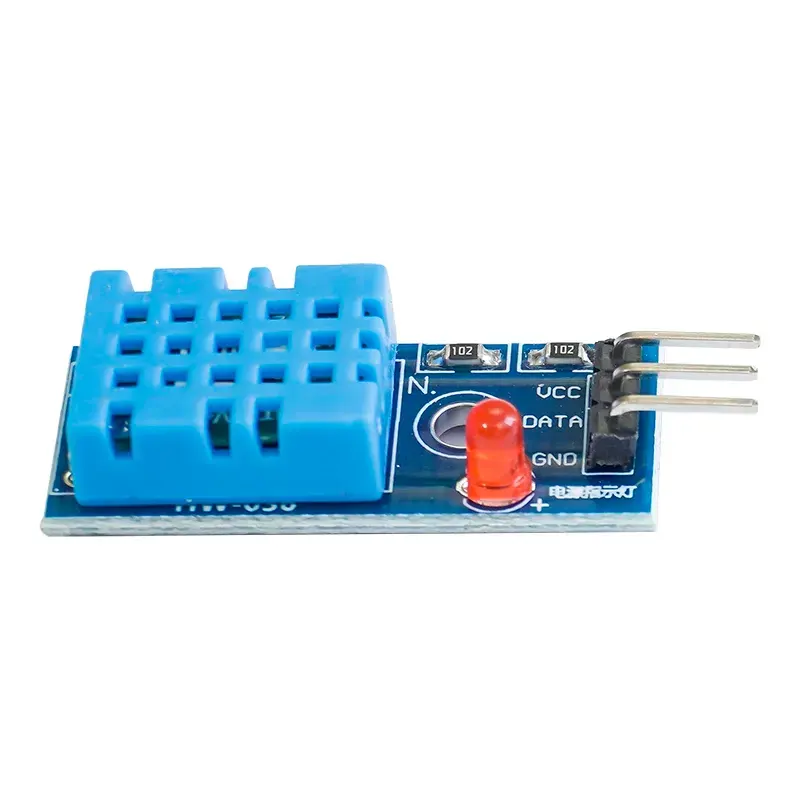

DHT11 Temperature and Humidity Sensor Module Digital Switch

KSh400.00 KSh500.00 -20%

● In stock (25 available)

SKU	AT-0252
Category	Sensors
Availability	In stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The DHT11 Temperature and Humidity Sensor Module is a reliable and cost-effective sensor designed for accurate measurement of ambient temperature and relative humidity. It provides digital output signals that are easy to read using Arduino, ESP32, Raspberry Pi, and other microcontrollers . Built using advanced digital signal acquisition and sensing technology, the DHT11 integrates a resistive humidity sensor , an NTC temperature sensor , and an onboard 8-bit microcontroller for signal processing and calibration. Each sensor is individually factory-calibrated in a precision humidity calibration chamber, ensuring consistent and accurate readings. Calibration coefficients are stored in internal

Key Features

Temperature and Humidity Composite Sensor – Measures both ambient temperature and relative humidity.
Accurate and stable readings for both temperature and humidity.
Pre-calibrated and ready for immediate use.
Digital signal eliminates the need for additional components.
Low power consumption ideal for battery-powered applications.
Excellent long-term stability and durability.
Simple single-wire connection for easy microcontroller integration.
Strong resistance to electrical interference.

Specifications

Operating Voltage	3.3V – 5V DC (compatible with Arduino and Raspberry Pi).
Temperature Range	0°C to 50°C (±2°C accuracy).
Humidity Range	20% to 90% RH (±5% RH accuracy).
Digital Output	Single-wire serial interface.
Calibrated Output	Pre-calibrated for accuracy and consistency.
Response Time	< 5 seconds typical.
Transmission Distance	Up to 20 meters.
Power Consumption	Ultra-low energy design.
Package	4-pin single-row module with mounting holes.
LED Indicator	Onboard power/status indicator for easy debugging.
Dimensions	Compact and lightweight, easy to install on PCB or breadboard.
