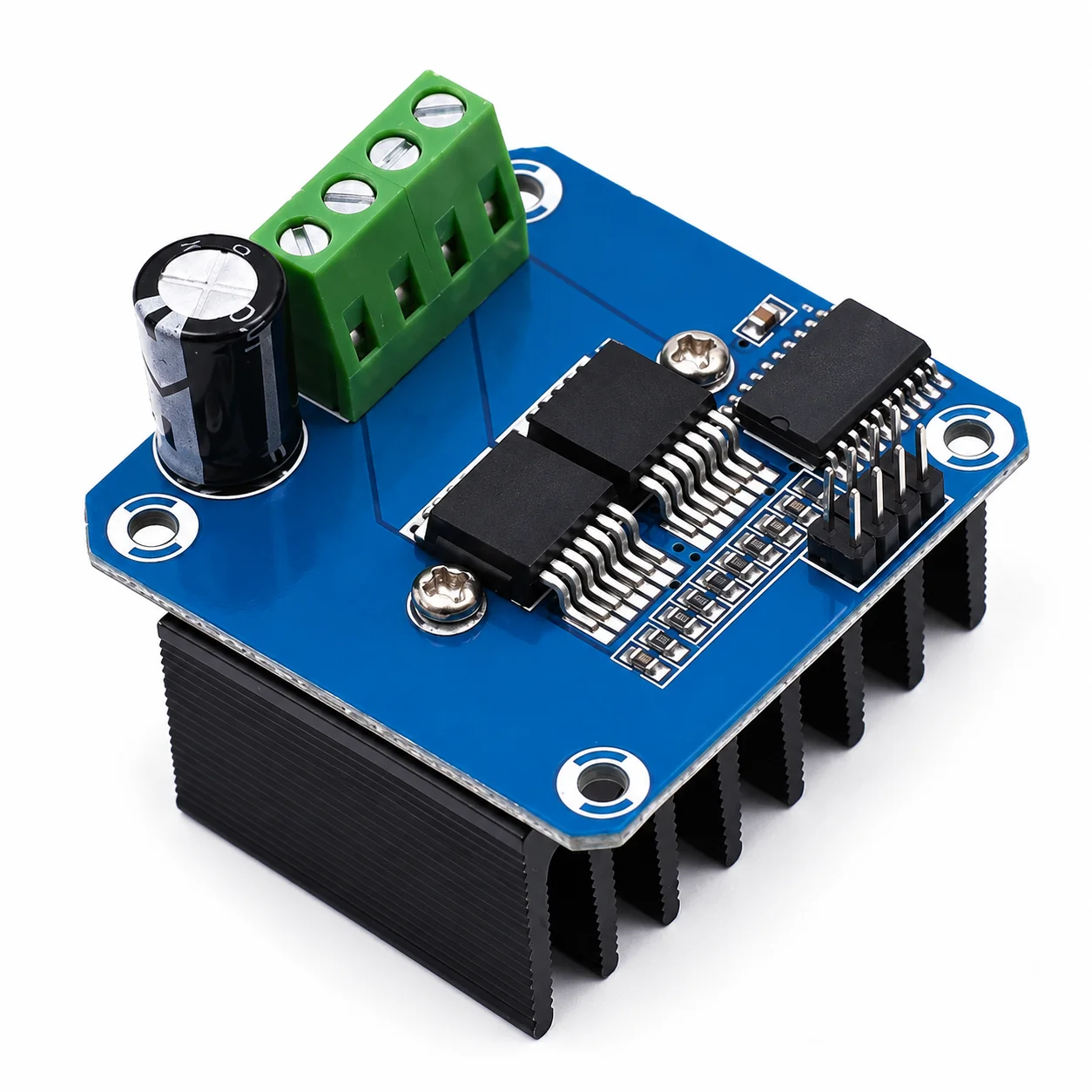

BTS7960 43A High-Power Motor Driver Module
● In Stock
| SKU | AT-0721 |
| Category | Actuators & Motors |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The BTS7960 43A Motor Driver Module (IBT-2) is a high-power H-bridge motor driver designed to control brushed DC motors in robotics, automation, electric vehicles, DIY projects, and other high-current applications. Based on the BTS7960 half-bridge driver ICs, the module provides bidirectional motor control with PWM speed control. It can be controlled directly from microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi through its logic-level control inputs. The module features built-in protection against over-temperature and over-current conditions and uses a large heatsink to improve thermal performance. Its high-current capability makes it suitable for substantially more powerful motors than common L298N motor driver modules.
Key Features
- High-current BTS7960 H-bridge motor driver
- Designed for brushed DC motors
- Bidirectional forward/reverse motor control
- PWM speed control
- Logic-compatible control interface
- Suitable for Arduino, ESP32, STM32 and other microcontrollers
- Built-in over-current and over-temperature protection
- Large heatsink for improved heat dissipation
- High-efficiency MOSFET-based switching
- Suitable for robotics, automation and high-power DIY projects
- Screw terminals for convenient motor and power connections
- 43A peak current rating under specified conditions
Specifications
| Specification Details | |
| Product Name BTS7960 Motor Driver Module | |
| Module Type IBT-2 H-Bridge | |
| Driver IC BTS7960 | |
| Motor Type Brushed DC Motor | |
| Motor Supply Voltage 5.5–27V DC | |
| Peak Output Current Up to 43A | |
| Recommended Continuous Current Depends on cooling, PCB, wiring and operating conditions | |
| Control Method PWM / Logic Level | |
| Motor Direction Forward / Reverse | |
| Logic Supply 5V | |
| PWM Frequency Up to 25 kHz | |
| Protection Over-current and over-temperature | |
| Interface RPWM, LPWM, R_EN, L_EN | |
| Operating Temperature Approximately -25°C to +85°C* | |

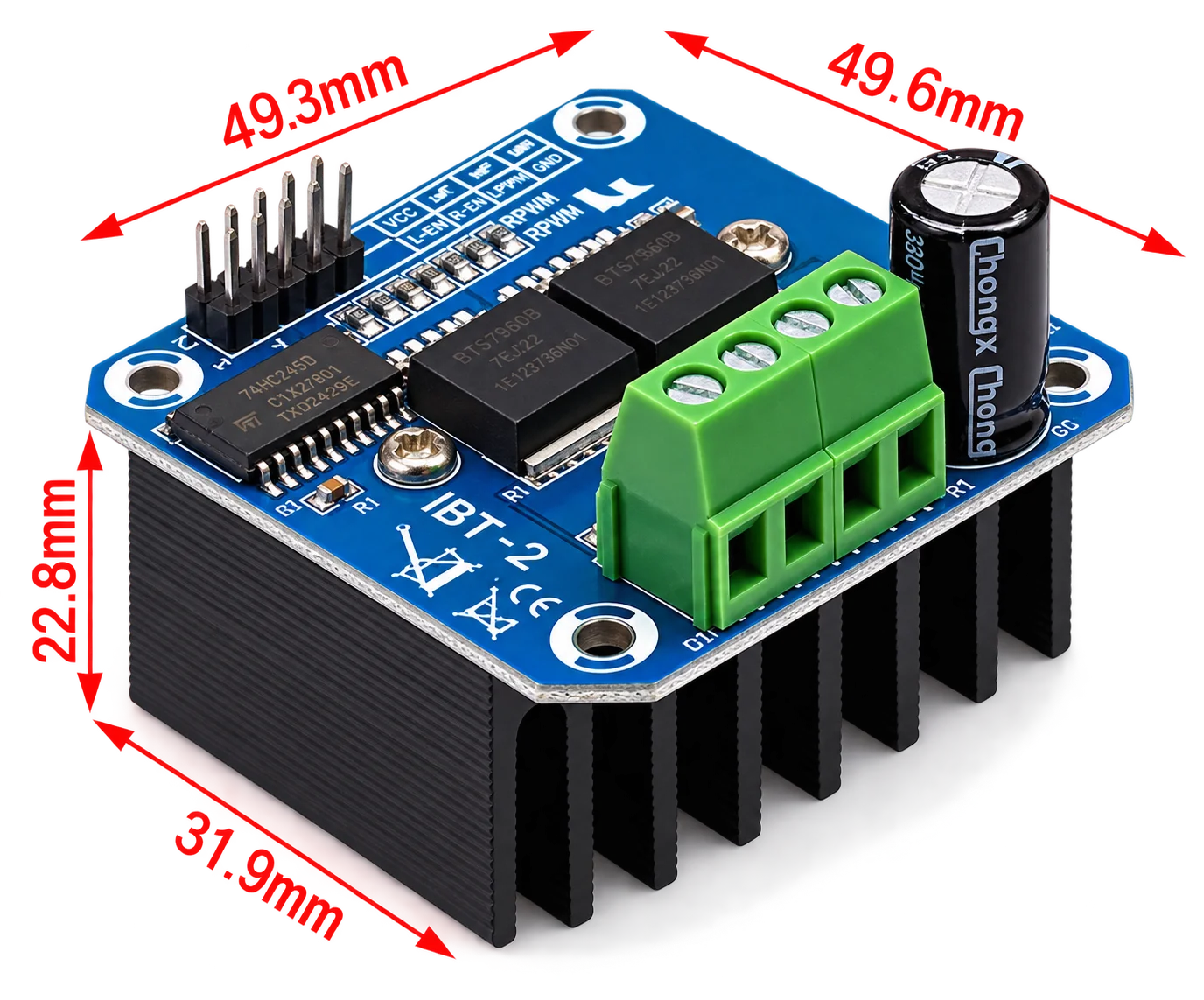

| Module Dimensions Approximately 50 × 50 mm | |
| Module Weight Approximately 45–55 g* | |
| Application Robotics, automation, electric vehicles, DIY motor control |
What's in the Box
- 1 x BTS7960 43A
