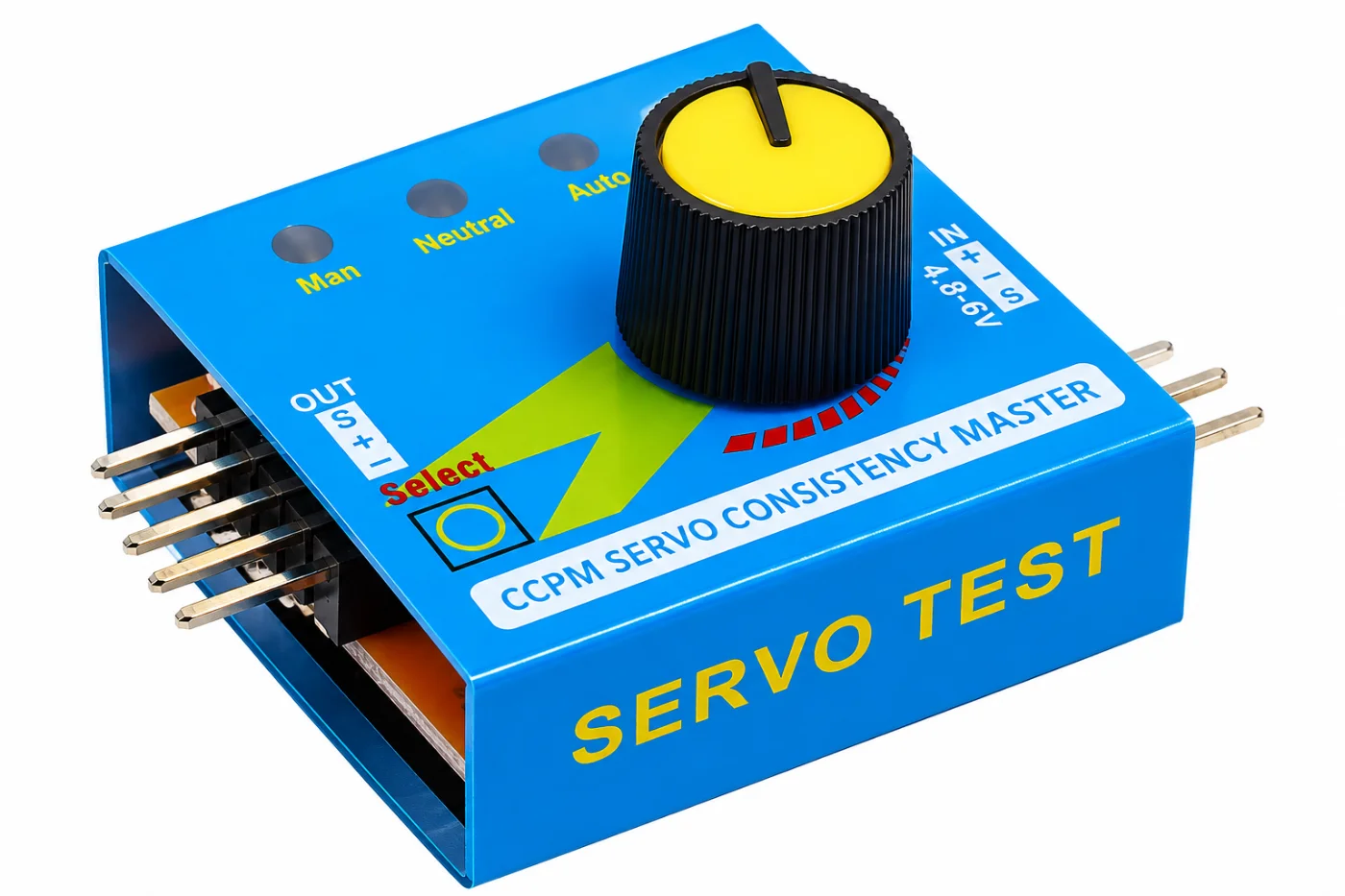

3CH Servo Tester CCPM Consistency Master Checker 4.8V–6V
● In Stock
| SKU | Servo Tester |
| Category | Prototyping Tools |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The 3CH Servo Tester CCPM Consistency Master Checker is a compact testing tool designed for checking and controlling RC servo motors and electronic speed controllers (ESCs) without requiring a transmitter or receiver. With three servo output channels, the tester can operate multiple servos simultaneously, making it useful for checking servo movement, comparing servo consistency, centering servo horns and setting up CCPM systems. It supports common RC servos operating from approximately 4.8V to 6V DC. The tester provides multiple operating modes for manual position adjustment, automatic sweeping and neutral/center positioning. An onboard rotary control allows easy adjustment of the servo position, while the indicator lights provide visual feedback during operation. It is ideal for RC cars, aircraft, boats, robots, robotic arms and electronics workshops where quick servo testing and calibration are required.
Key Features
- 3-channel servo tester
- Tests up to 3 servos simultaneously
- Suitable for standard RC servo motors
- Supports CCPM servo consistency testing
- Can be used to test compatible ESCs
- Manual servo position control
- Automatic servo sweep/testing mode
- Servo neutral/center position mode
- Rotary adjustment knob for easy control
- Built-in indicator lights
- No RC transmitter or receiver required
- Helps identify faulty or inconsistent servos
- Useful for centering servos before installing servo horns
- Compact and portable design
- Easy plug-and-play operation
- Ideal for RC, robotics and DIY electronics
Specifications
| Specification Details | |
| Product Type Servo Tester / CCPM Consistency Checker | |
| Number of Channels 3 Channels | |
| Operating Voltage 4.8V–6V DC | |
| Servo Outputs 3 | |
| Control Rotary Potentiometer / Mode Selection | |
| Servo Signal Standard RC PWM Servo Signal | |
| Manual Control Mode Yes | |
| Neutral / Center Mode Yes | |
| Automatic Sweep Mode Yes | |
| CCPM Consistency Testing Yes | |
| ESC Testing Supported for compatible RC ESCs | |
| Indicator Light Yes | |
| Transmitter Required No | |
| Receiver Required No | |
| Servo Connector Standard 3-Pin RC Servo Interface | |
| Typical Servo Center Approx. 1500µs | |
| Applications RC Servos, ESCs, Robotics & Model Testing | |
| Weight Approx. 8g | |
| Operating Modes | |
| Manual Mode | Rotate the adjustment knob to manually change the servo position. This is useful for checking servo travel, mechanical linkages and specific angles. |
|---|---|
| Neutral Mode | Automatically sends a center-position signal, making it convenient for centering a servo before attaching the servo horn or linkage. |
| Automatic Mode | Continuously sweeps the connected servo through its operating range, allowing you to observe movement, detect sticking and compare multiple servos. |
| Typical Applications | |
| Suitable for RC cars, RC aircraft, drones, boats, robotic arms, pan-and-tilt systems, steering mechanisms, robotics projects, servo installation, ESC testing and electronics repair workshops. | |
What's in the Box
- 1 × 3CH Servo Tester CCPM Consistency Master Checker
Customer Reviews
No reviews yet — bought this? Be the first to review it.
