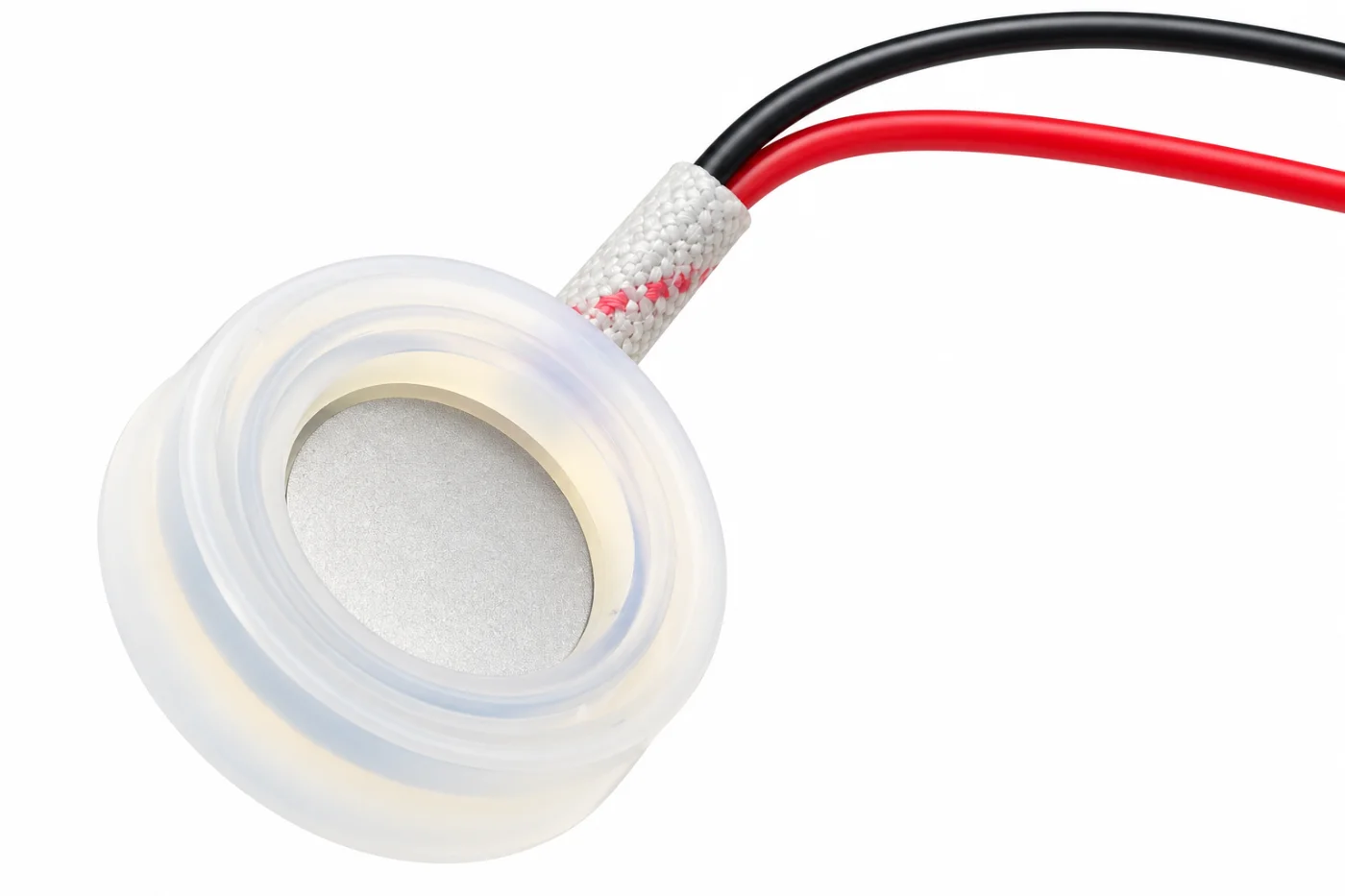

20mm 2.4MHz Ultrasonic Mist Maker Piezoelectric Ceramic Atomizer Disc
● In Stock
| SKU | Ultrasonic Mist Maker |
| Category | Sensors |
| Availability | In Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The 20mm 2.4MHz Ultrasonic Mist Maker Piezoelectric Ceramic Disc is a replacement atomizing transducer designed for ultrasonic humidifiers, foggers, mist makers and other atomization systems. Operating at approximately 2.4MHz, the piezoelectric ceramic element vibrates at ultrasonic frequency to break water into extremely fine droplets, producing a cool mist without using a heating element. This makes it suitable for humidification, decorative fog effects, hydroponics, indoor growing systems and DIY ultrasonic mist-generation projects. With a diameter of approximately 20mm, the atomizer disc is compact and can be integrated into compatible ultrasonic driver circuits and existing humidifier assemblies. Important: This is the piezoelectric atomizer disc/transducer only. It requires a compatible 2.4MHz ultrasonic driver circuit to operate and should not be connected directly to a DC power supply.
Key Features
- 20mm ultrasonic atomizer disc
- Operating frequency approximately 2.4MHz
- Piezoelectric ceramic construction
- Produces fine cool mist
- No heating element required
- Fast ultrasonic atomization
- Compact and lightweight design
- Low mechanical complexity
- Suitable as a replacement humidifier transducer
- Compatible with appropriate 2.4MHz driver circuits
- Ideal for DIY mist maker projects
- Suitable for humidification and decorative fog applications
- Can be used in hydroponic and plant-growing systems
Specifications
| Specification Details | |
| Product Type Ultrasonic Atomizing Transducer | |
| Technology Piezoelectric Ceramic | |
| Disc Diameter 20mm | |
| Resonant / Operating Frequency Approx. 2.4MHz | |
| Atomization Type Ultrasonic | |
| Mist Type Cool Mist | |
| Heating Required No | |
| Shape Round Disc | |
| Application Mist Maker / Fogger / Humidifier | |
| Driver Requirement Compatible 2.4MHz Ultrasonic Driver | |
| Direct DC Connection No | |
| Installation Replacement / DIY integration | |
| Typical Material Piezoelectric ceramic & metal substrate | |
| Weight Approx. 2g | |
| Typical Applications | |
| Suitable for air humidifiers, ultrasonic foggers, decorative fountains, hydroponics, terrariums, indoor growing systems, aroma diffusers, mist-generation equipment and DIY ultrasonic projects. | |
| Important Usage Note | |
| The atomizing disc cannot operate directly from 5V, 12V, 24V or another DC supply. A properly designed 2.4MHz ultrasonic oscillator/driver circuit is required to excite the piezoelectric element. | |
| For best performance, the atomizing surface should also be installed at the correct water level according to the design of the mist-maker assembly. |
What's in the Box
- 1 × 20mm 2.4MHz Ultrasonic Piezoelectric Atomizer Disc
