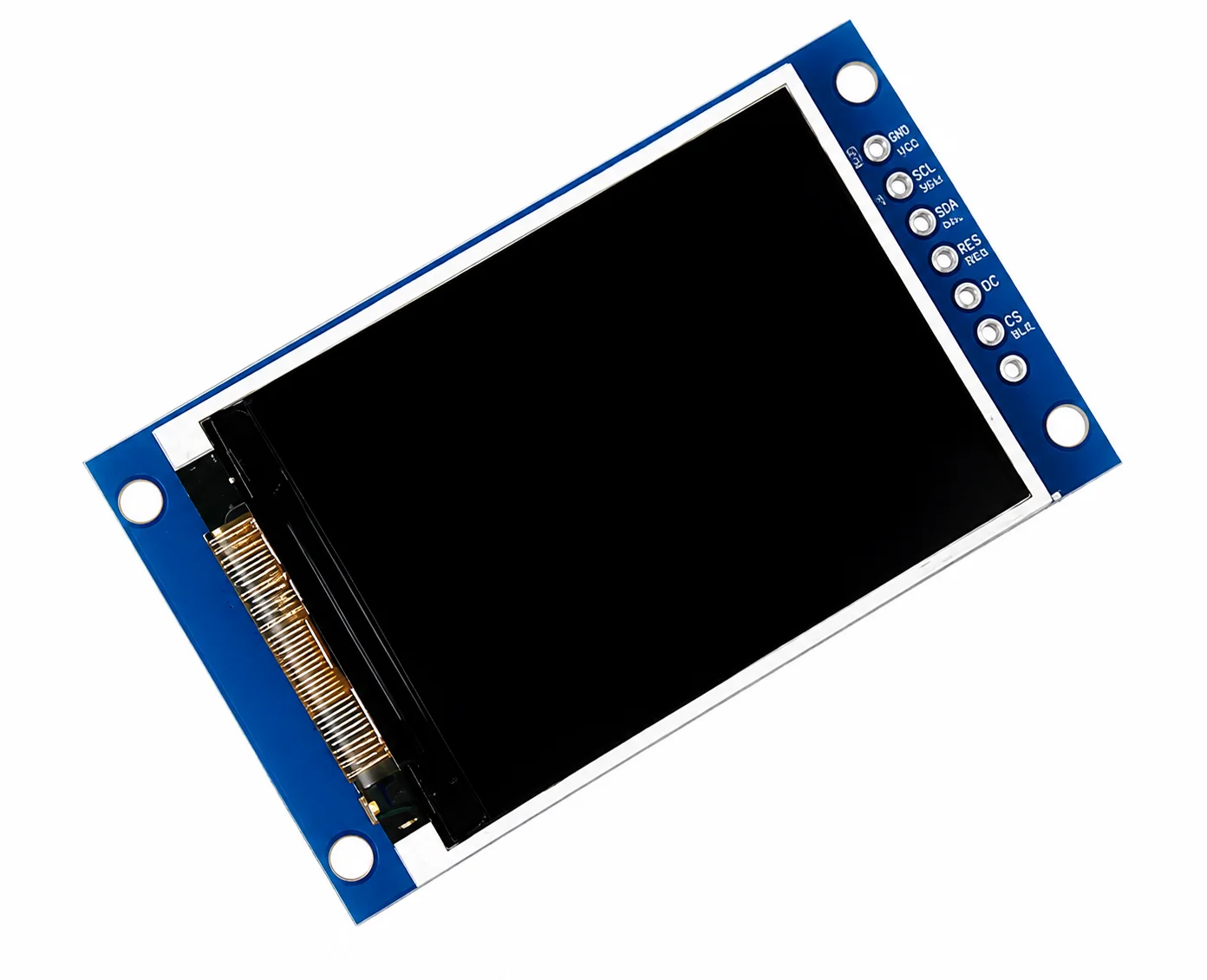

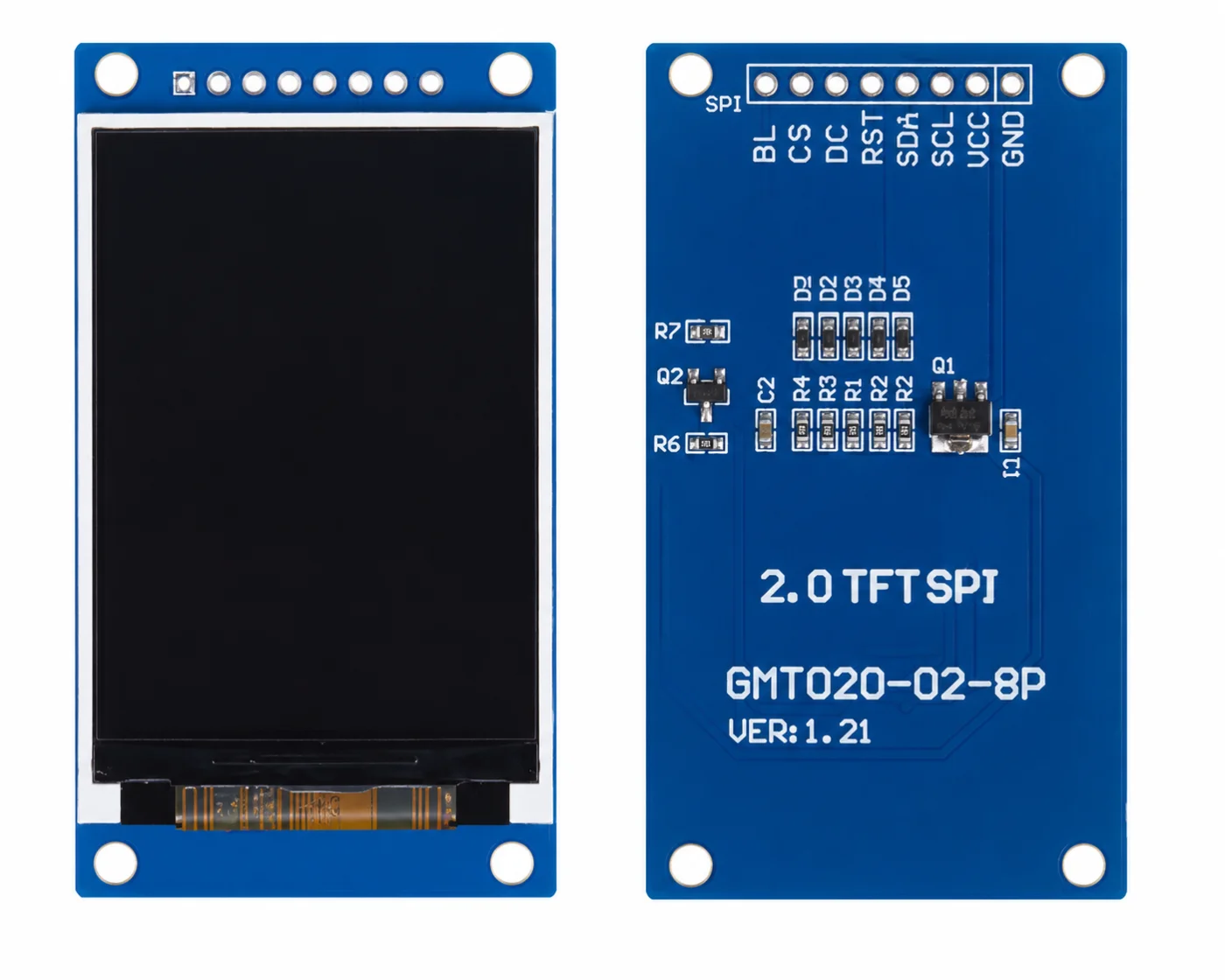

2.0 Inch TFT LCD Display ST7789 240×320 SPI Module | Full Color IPS Display for Arduino, ESP32 & Raspberry Pi
KSh1,500.00
● Low Stock
| SKU | AT-0671 |
| Category | Displays |
| Availability | Low Stock |
| Shipping | Countrywide delivery · Free on orders over KSh10,000.00 |
Description
The 2.0 Inch TFT LCD Display Module features the ST7789 controller with a 240×320 pixel resolution and SPI interface, delivering vibrant full-color graphics and wide viewing angles. It is ideal for Arduino, ESP32, Raspberry Pi, STM32, and other embedded display applications.
Key Features
- 2.0-inch IPS TFT LCD display
- ST7789 high-performance display controller
- 240 × 320 pixel (QVGA) resolution
- Full-color 65K RGB display
- High-speed SPI communication interface
- Wide viewing angle with IPS technology
- Bright, sharp, and vibrant display output
- Fast refresh rate for smooth graphics
- Compact PCB design for embedded applications
- Low power consumption
- Compatible with Arduino, ESP32, Raspberry Pi, STM32, ESP8266, and other SPI-enabled controllers
- Suitable for GUI development, IoT, robotics, and portable devices
Specifications
| Display Size | 2.0 inches |
|---|---|
| Display Type | IPS TFT LCD |
| Controller IC | ST7789 |
| Resolution | 240 × 320 pixels (QVGA) |
| Interface | SPI |
| Display Colors | 65K RGB |
| Operating Voltage | 3.3V–5V (module dependent) |
| Logic Voltage | 3.3V |
| Viewing Angle | Wide (IPS) |
| Backlight | LED |
| Operating Temperature | -20°C to +70°C |
| Module Dimensions | Approx. 51mm × 36mm |
