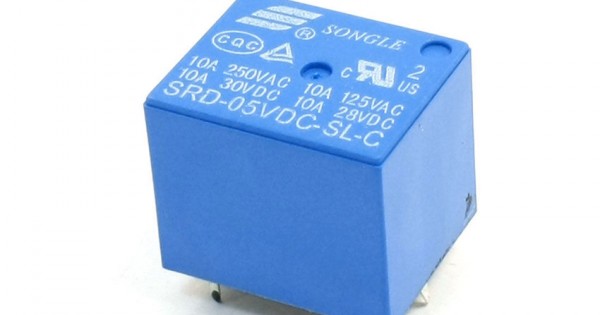

SRD-05VDC-SL-C 5V Relay | 10A Power Relay Module for Arduino, ESP32 & Raspberry Pi

Product Description

The SRD-05VDC-SL-C 5V Relay Module is a reliable electromechanical switching device used to control high-voltage or high-current loads using low-voltage control signals from Arduino, ESP32, STM32, or Raspberry Pi.

This relay provides complete isolation between the control circuit and load, ensuring safe operation when switching devices like lights, fans, motors, solenoid valves, and appliances.
With its standard 5V coil voltage and 10A switching capacity, it’s ideal for home automation, IoT, and smart control systems.

Key Features

• Model: SRD-05VDC-SL-C

• Relay Type: SPDT (Single Pole Double Throw)

• Coil Voltage: 5V DC

• Trigger Voltage: 5V (logic compatible with Arduino, ESP32, STM32)

• Contact Rating: 10A @ 250VAC / 10A @ 30VDC

• Contact Resistance: ≤ 100 mΩ

• Insulation Resistance: ≥ 100 MΩ (at 500VDC)

• Switching Time: ≤ 10ms (operate) / ≤ 5ms (release)

• Mechanical Life: 10 million operations

• Electrical Life: 100,000 operations

• Operating Temperature: –40°C to +85°C

• Dimensions: Approx. 19 × 15 × 15 mm

• Mounting Type: PCB through-hole

Advantages

• Controls AC or DC loads using microcontroller signals.

• High current capacity (up to 10A) – suitable for household appliances.

• Compact and reliable SRD relay design.

• Electrical and mechanical isolation for safety.

• Compatible with Arduino and Raspberry Pi relay libraries.

• Long lifespan and stable operation.

Applications

• Arduino and ESP32 automation projects

• Smart home and IoT control systems

• Motor, fan, and pump switching

• Power control circuits and AC load switching

• DIY electronics and embedded system development
