L298N Dual H-Bridge Motor Driver – DC & Stepper Motor Controller for Arduino Robotics
Original price was: KSh600.00.KSh500.00Current price is: KSh500.00.
L298N dual H-bridge motor driver controls 2 DC or 1 stepper motor. 5–35 V DC, 2 A per channel. Perfect for Arduino, ESP32, and robot projects.
Product Description:

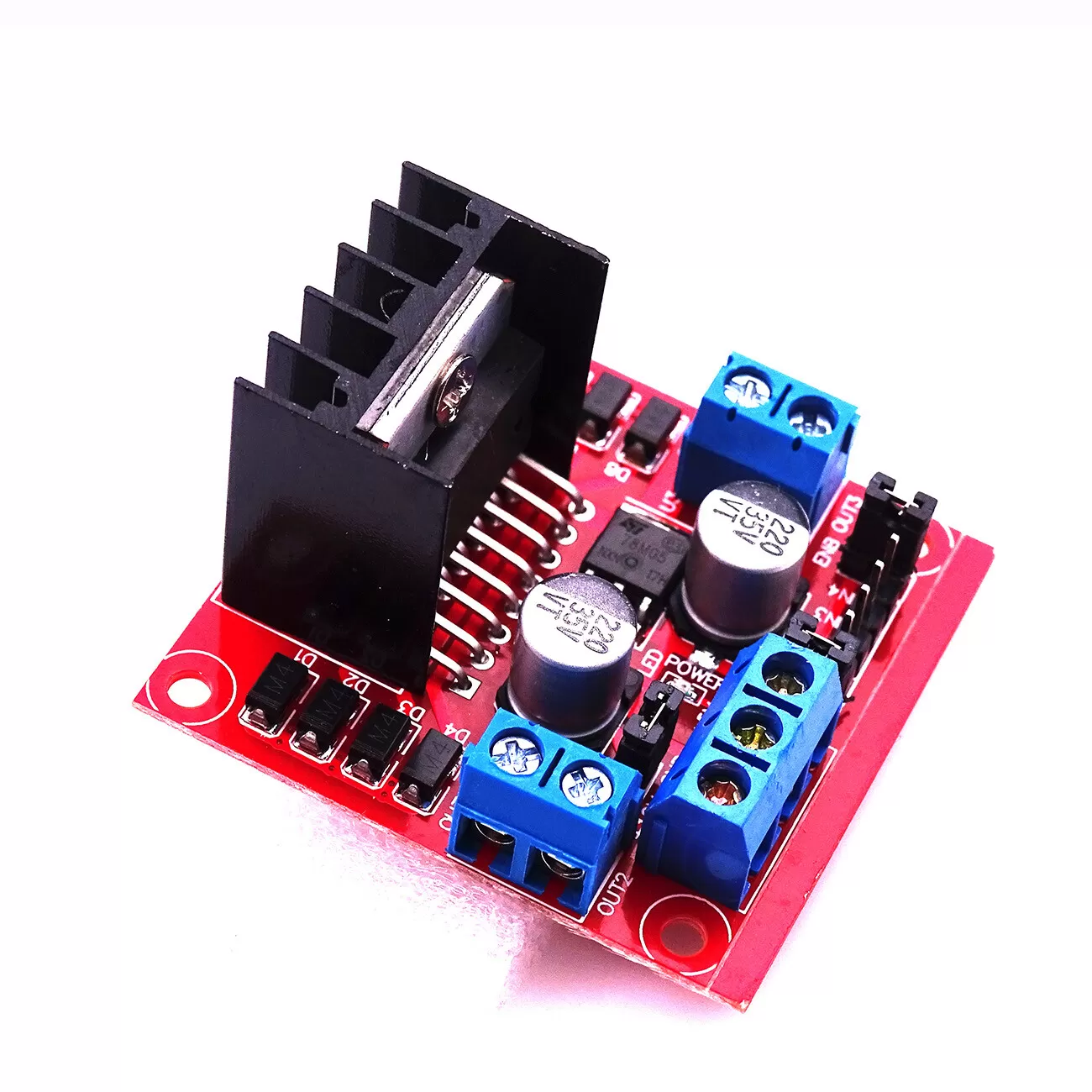

The L298N Dual H-Bridge Motor Driver Module allows you to easily control the speed and direction of two DC motors or one stepper motor using Arduino, Raspberry Pi, or other microcontrollers.
Built around the powerful L298N motor driver IC, this module provides up to 2 A per channel and includes onboard 5 V voltage regulation, enable pins, and direction control inputs. It’s ideal for robotics, smart cars, conveyor systems, and any motion-control projects.
⚙️ Features
-
Controls 2 DC motors or 1 stepper motor
-
Separate speed (PWM) and direction control pins
-
Onboard 5 V regulator (can power logic circuits)
-
Over-temperature and over-current protection
-
Screw terminals for easy motor and power connections
-
Compatible with Arduino, ESP32, and Raspberry Pi
-
LED indicators for motor direction
📐 Specifications
| Parameter | Description |
|---|---|
| Driver Chip | L298N |
| Motor Supply Voltage (Vms) | 5 V – 35 V DC |
| Logic Voltage (Vss) | 5 V DC |
| Output Current | 2 A per channel (max) |
| Logic Input Current | 0–36 mA |
| PWM Control | Yes |
| Number of Channels | 2 (Dual H-Bridge) |
| Dimensions | ~43 mm × 43 mm × 27 mm |
⚡ Applications
-
Smart robot cars
-
CNC and 3D-printer motor drivers
-
Conveyor and automation systems
-
Stepper- and DC-motor control projects
-
Arduino and IoT motion systems
📦 Package Includes
-
1 × L298N Dual H-Bridge Motor Driver Module
