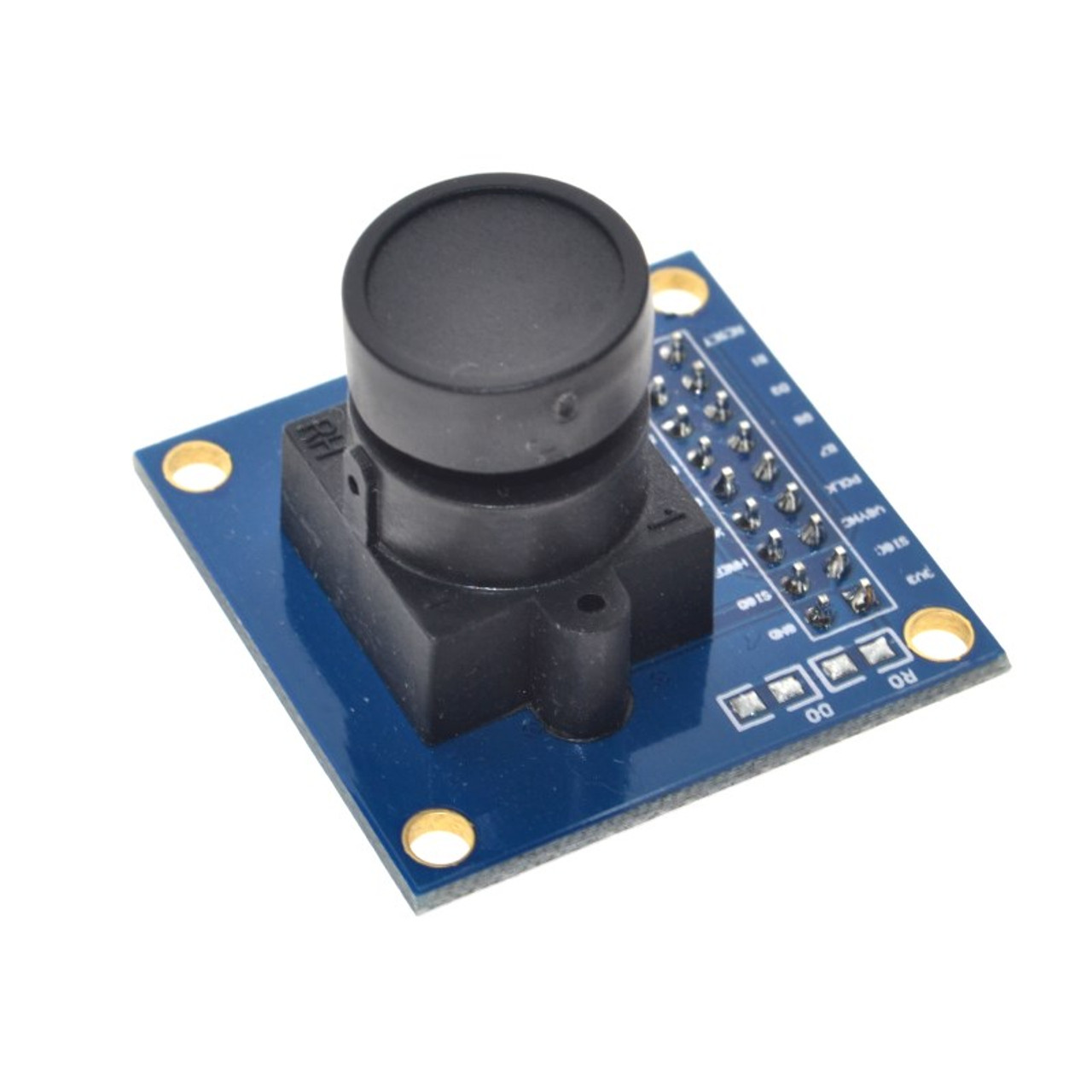

OV7670 Camera Module – 640×480 VGA Sensor for Arduino, ESP32, and STM32
Original price was: KSh600.00.KSh500.00Current price is: KSh500.00.
Capture 640×480 VGA images with the OV7670 camera module. Ideal for Arduino, ESP32, and STM32 vision and robotics projects.
Product Description:
The OV7670 Camera Module is a compact image sensor module capable of capturing high-quality 640×480 VGA images. It supports auto exposure control, auto white balance, and auto gain control, making it ideal for embedded vision, surveillance, and robotics projects.
Compatible with Arduino, ESP32, and STM32 boards, this module provides an affordable way to add camera functionality to your DIY or IoT applications. With low power consumption and high performance, the OV7670 is widely used in facial recognition, motion detection, and image-processing experiments.
⚙️ Features
-
Supports VGA (640×480) and CIF resolutions
-
Built-in auto exposure, auto white balance, and auto gain control
-
Real-time video output in RGB, YUV, or Bayer formats
-
Easy connection to Arduino, ESP32, and STM32 microcontrollers
-
Compact and lightweight design
-
Low operating voltage and power consumption
📐 Specifications
| Parameter | Description |
|---|---|
| Model | OV7670 |
| Sensor Type | CMOS Image Sensor |
| Resolution | 640 × 480 (VGA) |
| Interface | SCCB (I²C-like) + Parallel 8-bit data output |
| Image Format | RGB565 / YUV / Bayer RAW |
| Operating Voltage | 3.3V DC |
| Lens Type | Fixed focus |
| Frame Rate | Up to 30 fps at VGA |
| Active Array Size | 640 × 480 pixels |
| Dimensions | ~25mm × 25mm |
⚡ Applications
-
DIY camera projects
-
Face and motion detection systems
-
Robotics vision systems
-
Image and video processing
-
IoT and surveillance applications
📦 Package Includes
-
1 × OV7670 Camera Module
