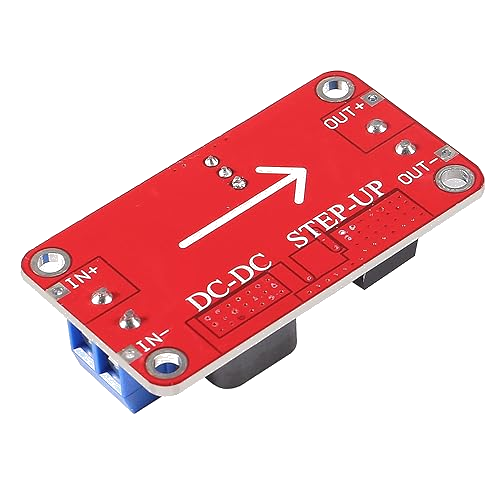

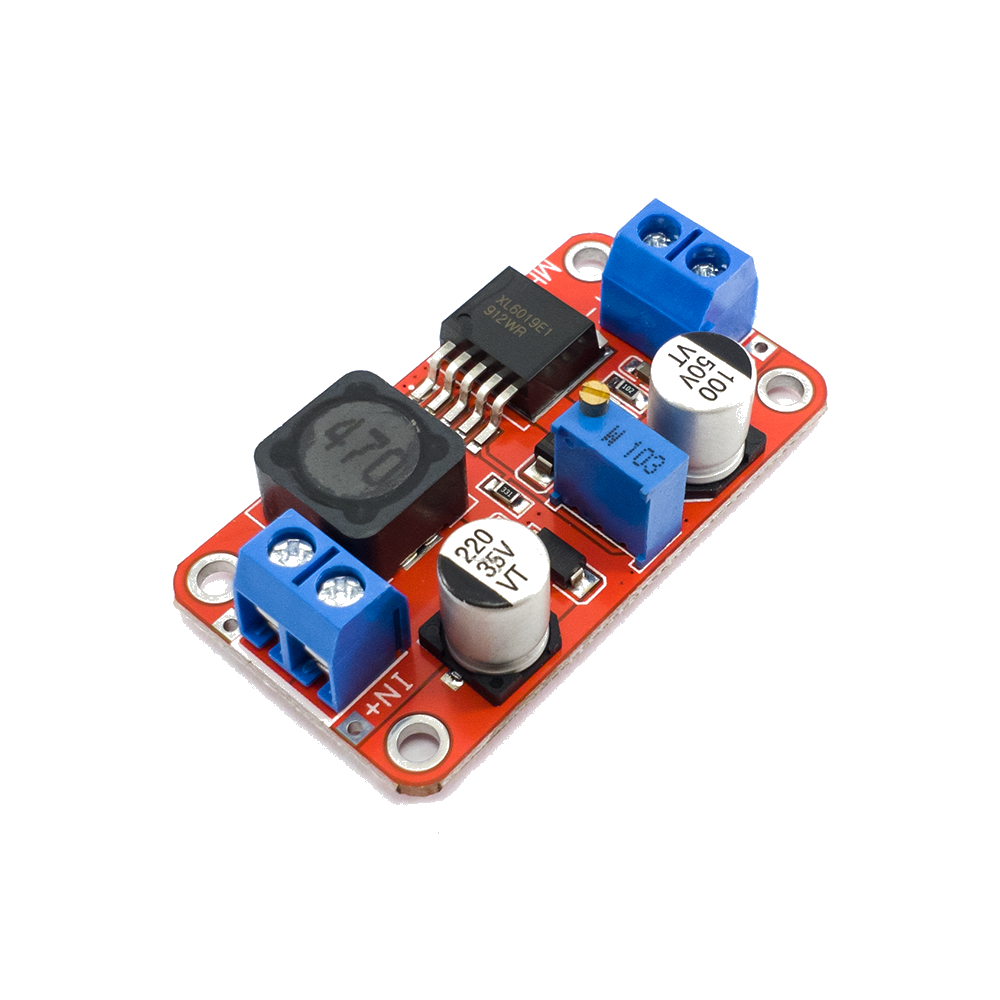

XL6019 5A DC-DC Adjustable Boost Converter Module | Step-Up Voltage Power Supply Module

Detailed Description

The XL6019 5A DC-DC Adjustable Boost Power Module is a versatile and efficient voltage step-up converter built around the reliable XL6019 switching regulator IC. It allows users to convert a lower DC input voltage into a higher adjustable output voltage with excellent efficiency and stable performance.

Featuring a wide input voltage range and adjustable output voltage, this module is suitable for powering electronic devices that require a higher voltage than the available power source. The onboard potentiometer enables precise output voltage adjustment, making it ideal for DIY electronics, solar power systems, battery-operated devices, robotics, automotive projects, LED lighting, and embedded applications.

The module offers high conversion efficiency, compact size, and dependable operation, making it a popular choice among hobbyists, engineers, and makers seeking an affordable and effective DC-DC boost converter solution.

Key Features

• Based on XL6019 Boost Converter IC
• High Current Output up to 5A
• Adjustable Output Voltage
• Wide Input Voltage Range
• High Conversion Efficiency (up to 94%)
• Stable and Reliable Performance
• Built-in Switching Regulation Technology
• Compact PCB Design
• Easy Output Voltage Adjustment via Potentiometer
• Suitable for Battery, Solar, and DC Power Applications
• Ideal for DIY Electronics, Robotics, LED Projects, and Automotive Systems

Specifications

• Module Type: DC-DC Step-Up (Boost) Converter
• IC Chip: XL6019
• Input Voltage: 3V – 35V DC
• Output Voltage: 5V – 40V DC (Adjustable)
• Maximum Output Current: 5A
• Conversion Efficiency: Up to 94%
• Switching Frequency: 180kHz
• Output Regulation: Adjustable via onboard potentiometer
• Operating Temperature: -40°C to +85°C

Applications

• Solar Power Systems
• Battery-Powered Projects
• Arduino & Raspberry Pi Projects
• Robotics and Automation
• LED Lighting Systems
• Automotive Electronics
• Portable Electronic Devices
• DIY Power Supply Projects

Weight

• Approximate: ~22g
