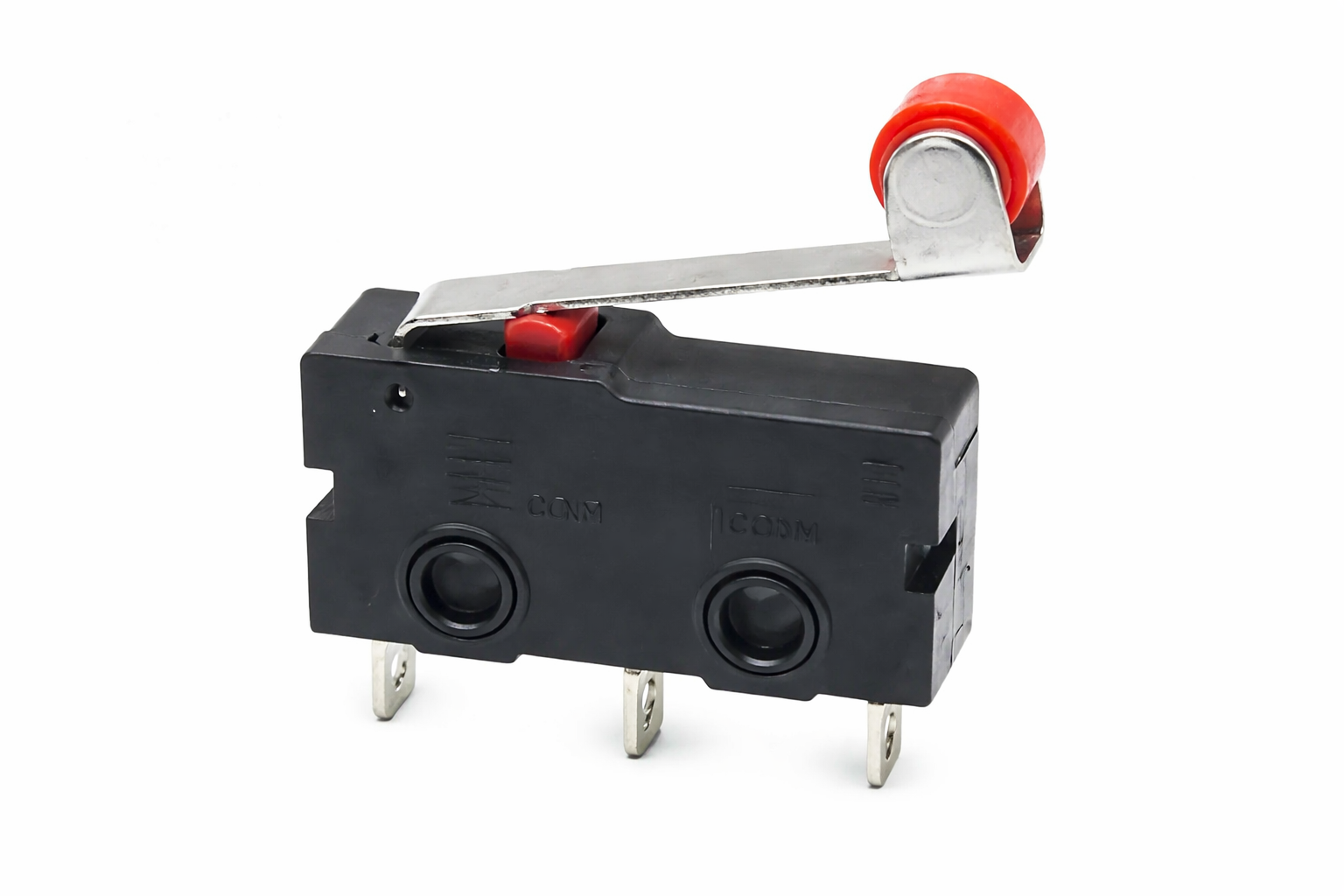

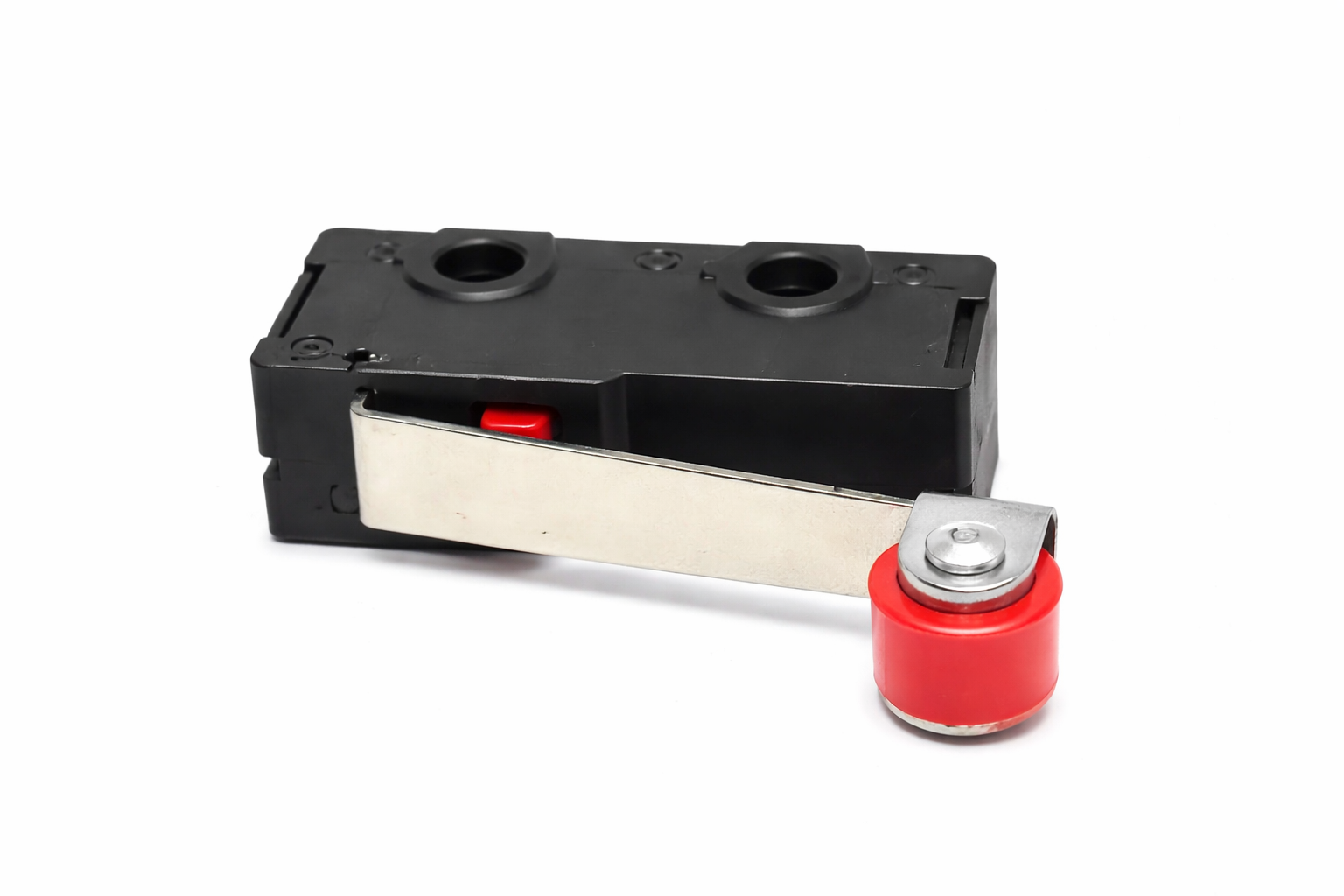

Micro Roller Lever Arm Limit Switch – Normally Open / Normally Closed Snap Action Switch
KSh100.00
The Micro Roller Lever Arm Limit Switch is a compact snap-action switch with both Normally Open (NO) and Normally Closed (NC) contacts. Featuring a metal roller lever arm, it is ideal for position detection, end-stop sensing, automation, CNC machines, robotics, and DIY electronics projects.
| Weight | 0.002 kg |
|---|
📖 Product Description
The Micro Roller Lever Arm Limit Switch is a versatile miniature snap-action switch designed for detecting movement, position, or mechanical limits in machines and electronic systems. It features a spring-loaded metal lever with a roller at the end, allowing smooth and reliable triggering when touched by a moving object.
This switch includes three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC). This allows it to be used in a variety of circuits depending on whether you want the switch to close or open when activated.
The compact size makes it ideal for use in 3D printers, CNC machines, robotic systems, automatic doors, industrial equipment, and DIY projects. It is commonly used as an end-stop or limit sensor to stop motors, detect positions, or trigger events.
The metal roller lever reduces friction and wear, making the switch more durable and suitable for repeated use. The switch can handle both low-voltage electronic circuits and higher-current control applications.
⭐ Key Features
- Miniature snap-action limit switch
- Includes Normally Open (NO) and Normally Closed (NC) contacts
- Metal roller lever arm for smooth operation
- Three terminals: COM, NO, and NC
- Compact and lightweight design
- Fast and reliable switching action
- Durable construction for long life
- Suitable for low-voltage and control circuits
- Easy to mount using two screw holes
- Ideal for CNC, robotics, 3D printers, and automation
⚙️ Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Micro Limit Switch |
| Contact Type | SPDT (COM, NO, NC) |
| Lever Type | Roller Lever Arm |
| Operating Mode | Normally Open / Normally Closed |
| Rated Voltage | Up to 250VAC |
| Rated Current | 5A – 10A |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥100MΩ |
| Mechanical Life | Approx. 1,000,000 operations |
| Electrical Life | Approx. 100,000 operations |
| Mounting Hole Distance | Approx. 9.5mm |
| Overall Size | Approx. 20mm × 10mm × 6mm |
| Weight | Approx. 2 grams |
🚀 Applications
- CNC machine end-stop switches
- 3D printer axis limit sensors
- Robotics and automation systems
- Position and motion detection
- Door and lid sensors
- DIY electronics and Arduino projects
- Industrial control equipment
- Conveyor and machine safety systems
