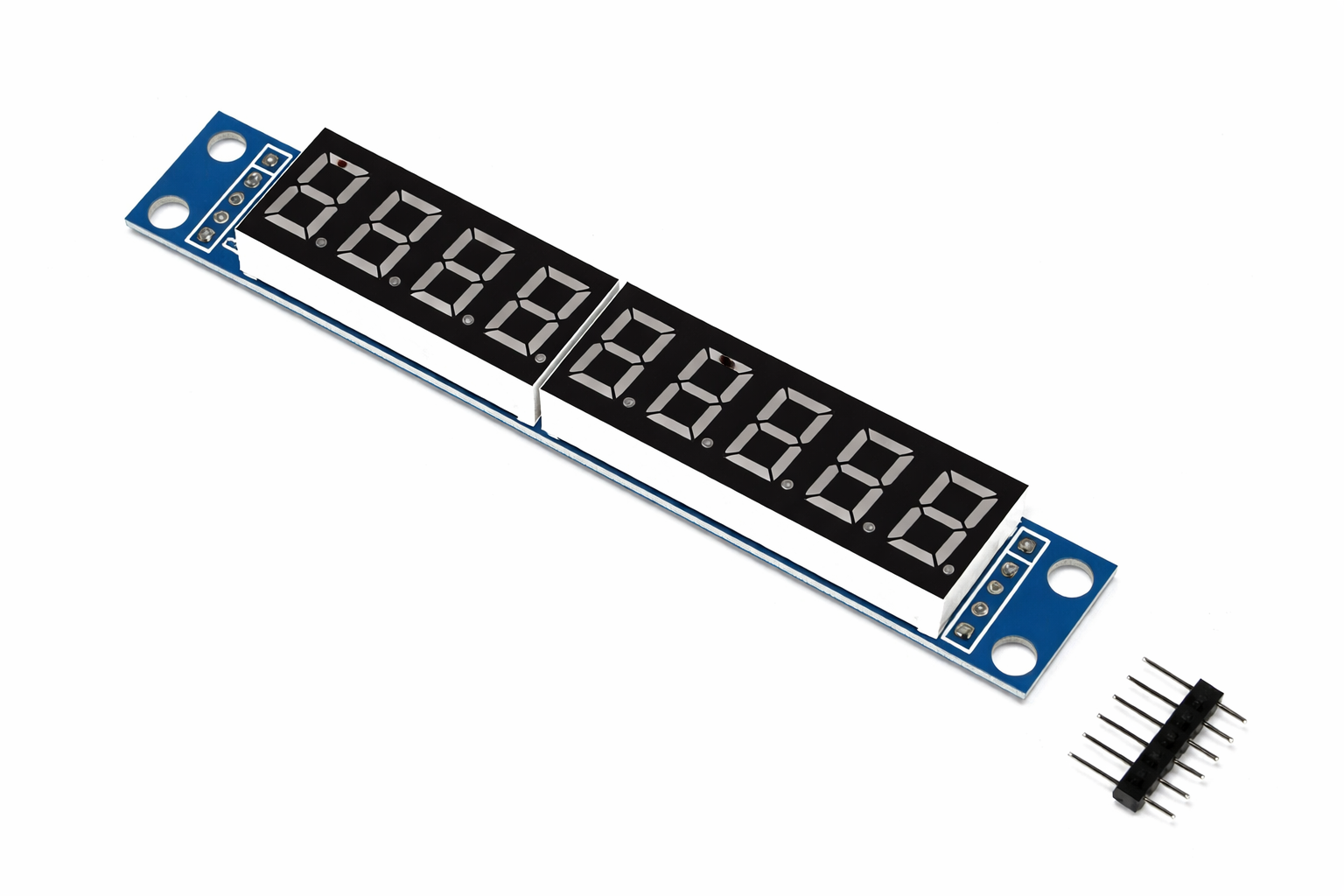

MAX7219 8-Digit 7-Segment LED Display Module 0.36 Inch Red LED Display for Arduino, Clock & DIY Electronics

KSh800.00 KSh900.00 -11%

● In stock (25 available)

SKU	AT-0134
Category	Displays
Availability	In stock
Shipping	Countrywide delivery · Free on orders over KSh10,000.00

Description

The MAX7219 8-digit digital LED display module is a compact and easy-to-use display board designed for displaying numbers, time, temperature, counters, scores, and other numeric information. It uses a bright red 0.36-inch 7-segment LED display driven by the MAX7219 IC, which allows simple serial communication using only a few microcontroller pins. This module contains 8 digits arranged in a row and supports cascading multiple modules together for longer displays. The built-in MAX7219 driver handles multiplexing, brightness control, and communication, making it ideal for Arduino, ESP32, Raspberry Pi, STM32, and DIY electronics projects. Its compact size and bright red display make it especial

Key Features

Bright 0.36-inch red 8-digit display
Controlled by MAX7219 serial driver IC
Requires only 3 microcontroller pins
Adjustable brightness with 16 intensity levels
Supports cascading multiple modules together
Easy to use with Arduino, ESP32, Raspberry Pi, STM32, and PIC
Compact and lightweight design
Ideal for clocks, timers, counters, and measurement displays
Stable and flicker-free operation
VCC – 5V Power Supply
GND – Ground
DIN – Serial Data Input

Specifications

Module Type	MAX7219 8-Digit 7-Segment LED Display Module
Driver IC	MAX7219
Display Type	8-Digit 7-Segment LED
Digit Size	0.36 Inch
Display Color	Red
Number of Digits	8
Interface Type	Serial (DIN, CS, CLK)
Operating Voltage	5V DC
Typical Current Consumption	150mA – 320mA
Brightness Control	16 Levels Adjustable
Cascade Support	Yes
Mounting Holes	Included
Module Dimensions	Approx. 82 mm × 15 mm × 12 mm
Approximate Weight	10 g – 15 g per module
