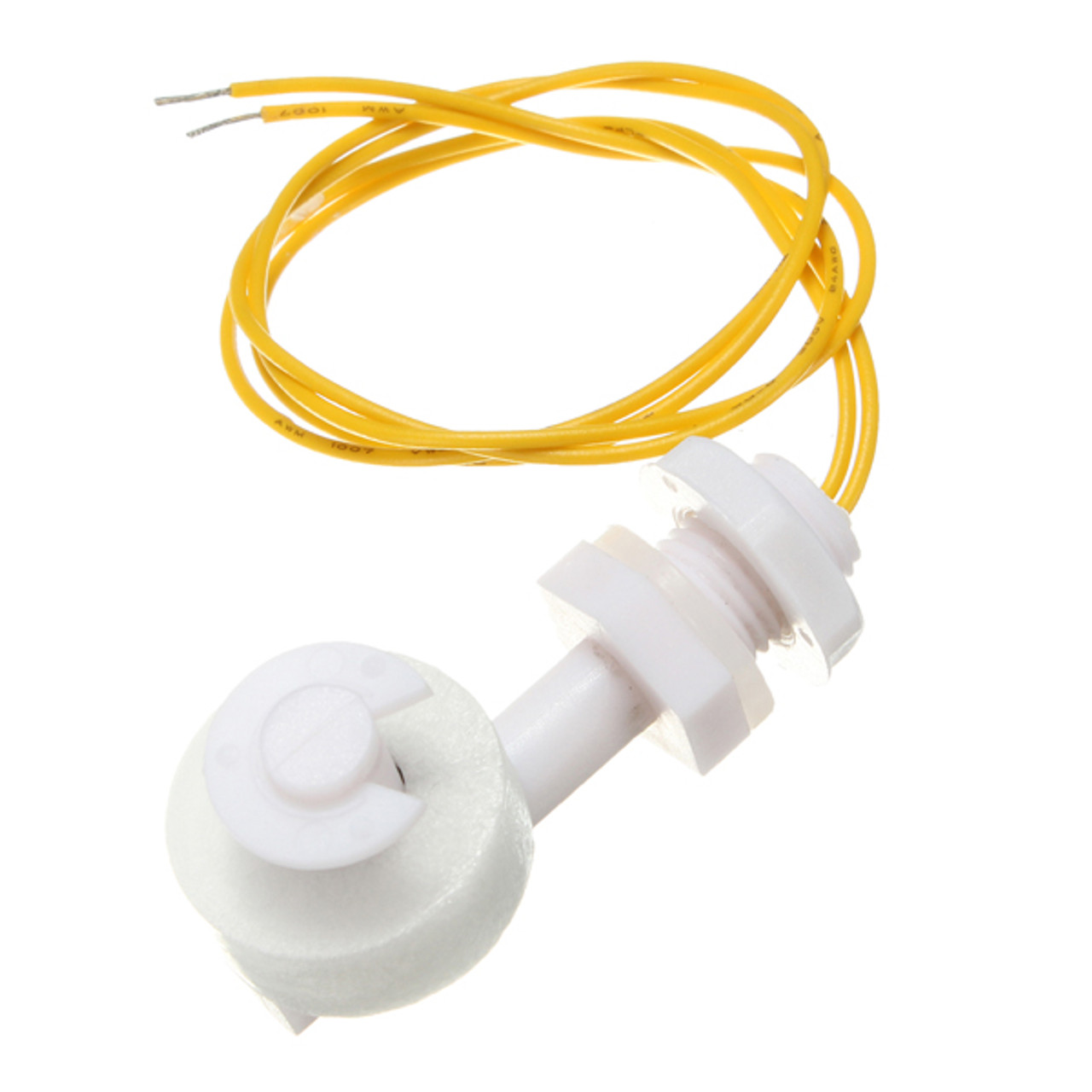

Mini Right-Angle Water Level Float Switch | Compact Liquid Level Sensor for Tanks, Arduino & Smart Water Control Systems

Product Description

The Mini Right-Angle Water Level Float Switch is a compact and reliable liquid level detection sensor designed to monitor water or other non-corrosive liquids in tanks, reservoirs, and automation systems.

Built with a right-angle mounting design, this switch can be easily installed on the side walls of tanks or containers. It works using a magnetic reed switch mechanism — when the float rises or falls with the liquid level, it opens or closes the circuit to trigger a control device such as a pump, buzzer, or indicator LED.

Lightweight yet durable, the switch is made from corrosion-resistant materials, making it suitable for Arduino projects, IoT water control systems, and industrial liquid monitoring.

Key Features

• Type: Mini right-angle float switch (liquid level sensor)

• Operating Principle: Magnetic reed contact (NO/NC reversible by mounting direction)

• Mounting Style: Side-mount / right-angle design

• Material: PP or nylon (anti-corrosive and waterproof)

• Operating Voltage: 0–100 V DC / 0–220 V AC

• Maximum Switching Current: 0.5 A – 1 A

• Power Rating: Up to 10 W

• Operating Temperature: –10 °C to +85 °C

• Cable Length: ~30 cm (can vary by model)

• Float Diameter: ~18–25 mm

• Waterproof Rating: IP68 – fully submersible

• Compatibility: Arduino, ESP32, Raspberry Pi, relay modules, and industrial controllers

Advantages

• Compact design ideal for small or narrow tanks.

• Right-angle mount simplifies side-wall installation.

• Works as Normally Open or Normally Closed (by rotating float).

• Reliable magnetic switch with long mechanical life.

• Resistant to water, oil, and mild chemicals.

• Perfect for DIY, hobby, and industrial automation setups.

Applications

• Water tank and reservoir level monitoring

• Aquarium and hydroponic systems

• Automatic pump or valve control

• Smart irrigation systems

• IoT and Arduino-based liquid sensing projects
