MB102 Breadboard Power Supply Module | Dual 3.3V/5V Regulated Power Board for MB-102 Breadboard & Arduino Projects

Product Description

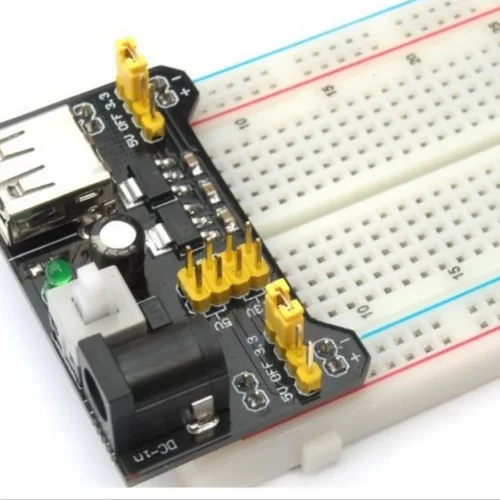

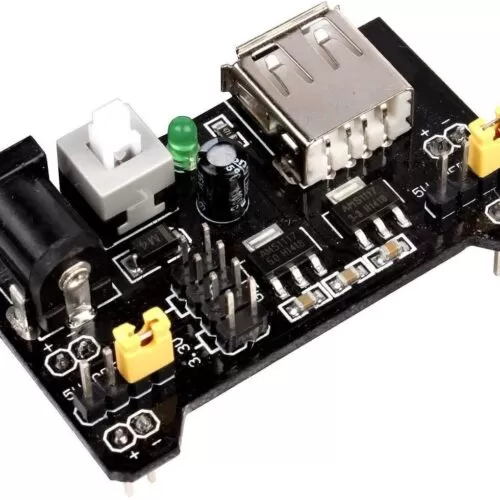

The MB102 Breadboard Power Supply Module is a dedicated dual-voltage regulator board designed to power MB-102 solderless breadboards easily and safely.
It provides stable 3.3V and 5V outputs through onboard regulators, ideal for powering Arduino, ESP32, STM32, sensors, and other low-voltage electronic components during prototyping.

The module can be powered via USB Type-A or a DC barrel jack (6.5V–12V input) and supports independent voltage selection on both sides of the breadboard, allowing flexible configuration for different circuits.
Compact, reliable, and beginner-friendly, it’s an essential tool for DIY electronics, IoT projects, and classroom prototyping.

Key Features

• Model: MB102 Breadboard Power Supply Module

• Input Voltage:

  • 6.5V–12V DC (barrel jack input)

  • 5V DC (USB input)

• Output Voltage: Selectable 3.3V or 5V on each power rail

• Output Current: Up to 700 mA (max 1A peak)

• Voltage Selection: Two independent jumpers for 3.3V/5V selection (left & right rails)

• Output Pins:

  • Two power rails (fits MB-102 breadboard)

  • Additional 3.3V/5V headers for external connections

• Connectors: DC barrel jack and USB Type-A input

• Power Indicator: Onboard LED for power status

• Protection: Over-current and short-circuit protection

• Compatibility: MB-102 and similar full-size solderless breadboards

• Dimensions: 54 × 32 × 20 mm (approx.)

Advantages

• Provides dual 3.3V and 5V outputs simultaneously for mixed-voltage projects.

• Plug-and-play fit for MB-102 breadboards — no wiring needed.

• Supports both USB and DC input options for flexible power sourcing.

• Onboard jumpers allow independent voltage selection on each rail.

• Perfect for Arduino, ESP32, STM32, and sensor-based experiments.

• Integrated power LED indicator for easy status monitoring.

Applications

• Arduino and microcontroller prototyping

• Breadboard circuit testing and power distribution

• Sensor and module powering (3.3V & 5V compatible)

• Educational electronics and DIY lab projects

• Embedded and IoT development setups
