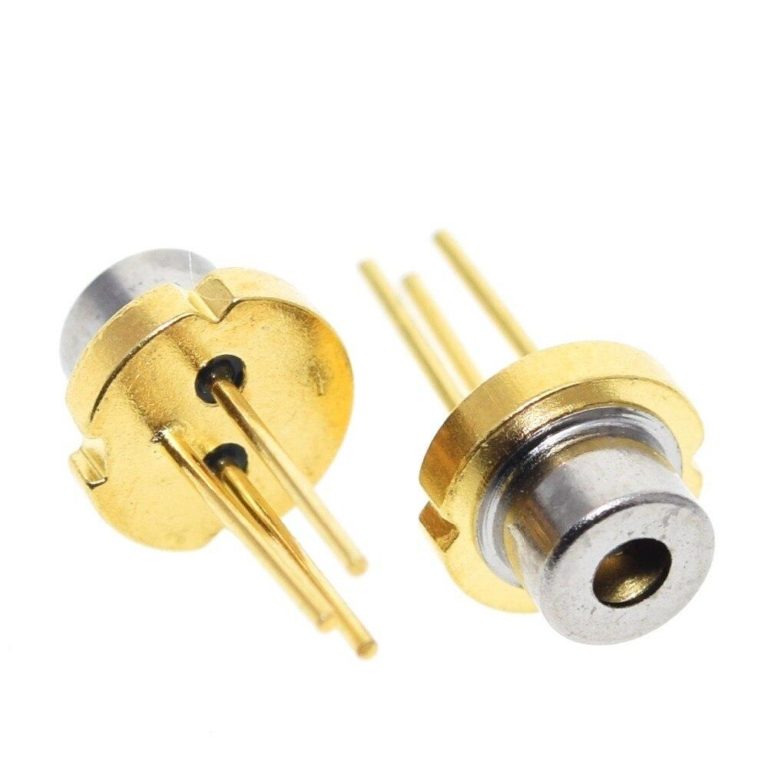

808nm 300mW Infrared Laser Diode | 2.2V TO-18 High-Power IR Laser Module for DIY Lab & Optical Projects

Product Description

The 808nm High-Power Infrared Laser Diode (TO-18 package) is a precision-engineered infrared (IR) laser source designed for DIY laboratory projects, optical research, alignment systems, and laser experimentation.

Operating at 808 nanometers (near-infrared spectrum), this 300mW laser diode produces an invisible but powerful IR beam, making it ideal for pumping solid-state lasers, optical fiber testing, or infrared illumination.
Housed in a TO-18 metal can package, it provides excellent thermal stability, long service life, and consistent power output when properly driven.

⚠️ Note: The 808nm beam is not visible to the naked eye. Proper IR-rated laser safety goggles are required when operating this device.

Key Features

• Model: 808nm Infrared Laser Diode Module (TO-18)

• Wavelength: 808 nm (near-infrared)

• Optical Output Power: 300 mW (continuous wave)

• Operating Voltage: 2.0V – 2.2V DC

• Operating Current: ≤ 300 mA

• Laser Type: Semiconductor laser diode (Class 3B when powered)

• Package Type: TO-18 (5.6 mm metal housing)

• Beam Type: Continuous wave (CW) IR output

• Beam Visibility: Invisible to human eyes (IR spectrum)

• Operating Temperature: –10°C to +40°C

• Storage Temperature: –20°C to +60°C

• Expected Lifetime: > 5,000 hours (with proper cooling)

• Cooling Requirement: Passive or active heat dissipation recommended

Advantages

• High-power 300mW IR output for scientific and optical use.

• Stable operation in compact TO-18 housing.

• Low operating voltage (2.2V) and moderate current requirement.

• Excellent choice for DIY optical, research, and IR illumination projects.

• Compatible with laser driver modules and experimental optics systems.

Applications

• DIY laser laboratory experiments

• Optical fiber testing and IR communication

• Infrared illumination and night-vision systems

• Solid-state laser pumping

• Educational demonstrations and wavelength research

• Alignment and precision optical measurement tools
